Yamaha TIO 1608-D2 Stagebox with Dante
Description
Yamaha TIO 1608-D2 Stagebox with Dante
Yamaha TIO 1608-D2 is the ideal stagebox for use with TF Series or DM3, providing low-latency and high-quality sound transmission. By connecting the console and TIO1608-D2 units with a lightweight and durable CAT5e Ethernet cable in a daisy chain, you can enjoy a hassle-free setup without the need for time-consuming transport and installation. Utilizing the Dante High-Reliability Network Audio Protocol, the TIO1608-D2 offers low jitter, low latency, and high sampling accuracy. With little or no IT networking knowledge required, you can easily configure a high-performance Dante stagebox system. This stagebox also offers versatility and scalability, allowing it to be combined with other Dante-enabled equipment such as R Series I/O racks.
The TIO1608-D2 features recallable D-PRE preamplifiers, providing a consistent and natural sound throughout the entire system. Its simple and flexible input selection allows you to assign inputs to best suit your system setup, with the option to receive signals from multiple locations.
Dante-equipped stagebox
With the Dante High Reliability Network Audio Protocol, the TIO1608-D2 guarantees exceptional audio performance. Dante is renowned for its low jitter, low latency, and high sampling accuracy, making it the go-to choice for leading manufacturers and professionals in the sound reinforcement industry. You don’t need extensive IT networking knowledge to configure a high-performance Dante stagebox system with the TIO1608-D2. With the flexibility of the Dante network protocol, you can easily connect TF Series or DM3 consoles to various Dante-enabled equipment, such as R Series I/O racks.
Complement your console

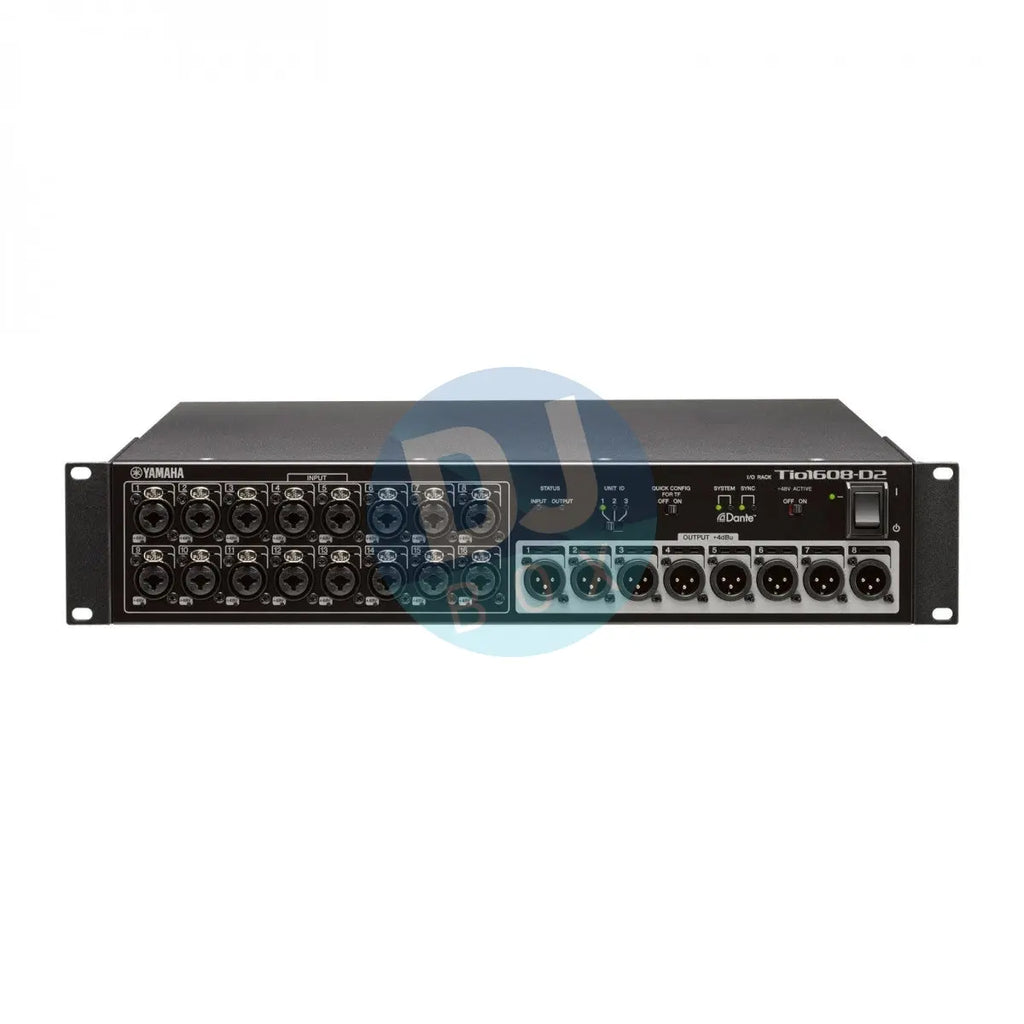

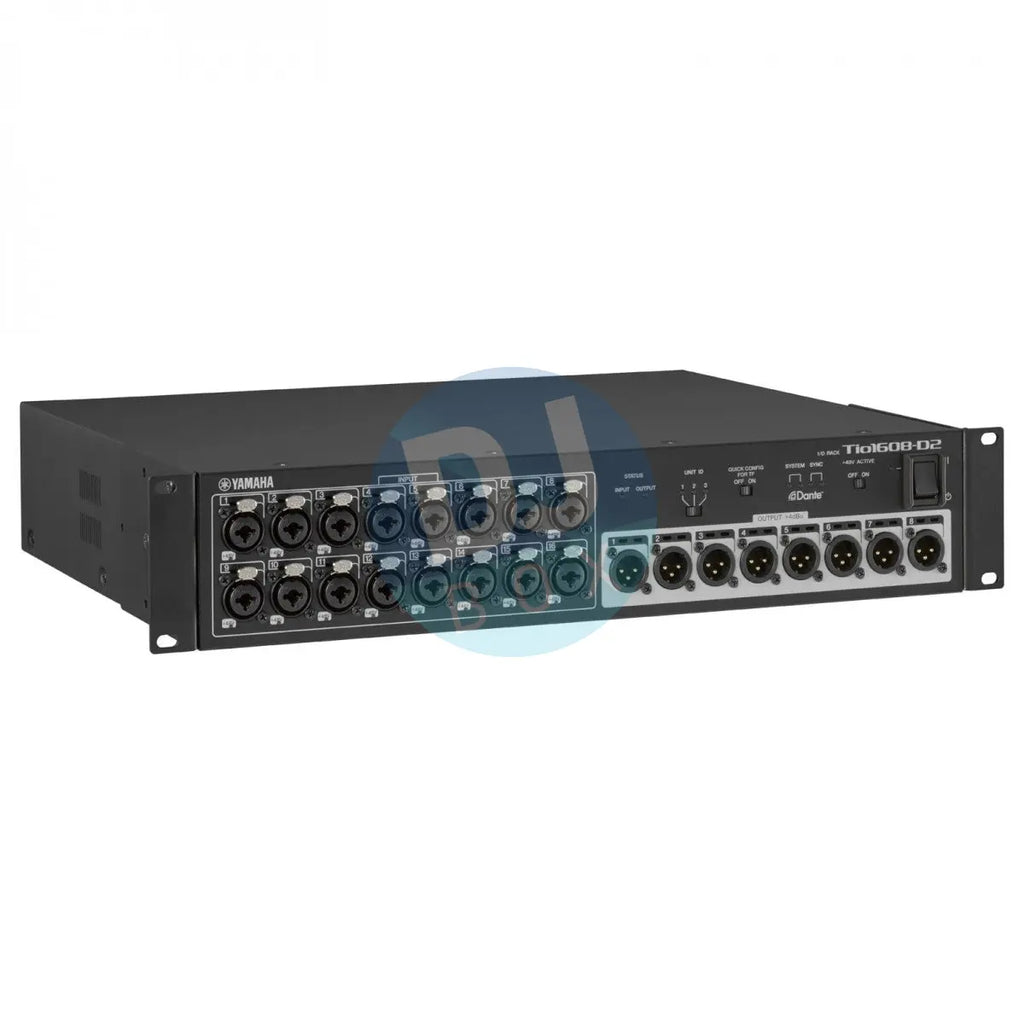

Enhance the convenience of your console with the Yamaha TIO1608-D2 Stagebox. This Dante-compatible I/O rack is equipped with 16 mic/line inputs and 8 line outputs, providing you with versatile audio connectivity options. One of its standout features is the ability to control gain remotely from TF Series and DM3 consoles, allowing you to build a simple stagebox system. In combination with the optional NY64-D expansion card (sold separately), the TF Series can connect to up to three TIO1608-D2 units, while the DM3 can connect to a single unit. By connecting the console and stagebox with a lightweight, durable CAT5e Ethernet cable in a daisy chain, you can ensure low-latency, high-quality sound transmission without the hassle of analog snakes.
Pristine, recallable D-PRE preamps
Experience exceptional sound quality with the TIO1608-D2, thanks to its recallable D-PRE preamplifiers. These preamps, inherited from the TF Series, deliver a consistent, natural, and musical sound throughout your entire audio system. Meticulous attention to detail and quality is evident in the mechanical construction, circuit board layout, power supply, grounding, and parts selection of the TIO1608-D2.
Features
- 16-in, 8-out digital stagebox for live or studio sound applications
- Equipped with Dante network connectivity for fast, stable audio transmission
- Integration with Yamaha DM and TF-series mixers for quick and easy setup
- 16 mic/line inputs and 8 line outputs for simplifying wide-ranging audio setups
- Rapid and versatile input selection with all 16 inputs accepting signals from multiple locations
- Clean, high headroom D-PRE preamps with recallability for easy and consistent sound mixing
- Up to 96 kHz audio for pristine sound quality
Specifications
- Sample Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, selectable
- Signal Delay: Less than 1.3 ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25 ms (one way), Fs = 96 kHz; Less than 2.6 ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25 ms (one way), Fs = 48 kHz
- Total Harmonic Distortion: Less than 0.2% +4 dBu @ 20 Hz – 20 kHz into 600Ω, Gain = +66 dB / Less than 0.05% +4 dBU @ 20Hz – 20kHz into 600Ω, Gain = -6 dB, INPUT to OUTPUT, Fs = 88.2 kHz, 96kHz; Less than 0.1% +4 dBu @ 20 Hz – 20 kHz into 600Ω, Gain = +66 dB / Less than 0.05% +4 dBU @ 20 Hz – 20 kHz into 600Ω, Gain = -6 dB, INPUT to OUTPUT, Fs = 44.1 kHz, 48 kHz *Measured with a -18 dB/octave filter @ 80 kHz
- Dynamic Range: 108 dB
- Frequency Response: 20 Hz – 20 kHz
- Equivalent Input Noise: -128 dBu, Gain = +66 dB, Fs 96 kHz, 48 kHz *Measured with A-weighting filter
- Residual Output Noise: -86 dBu, Fs 96 kHz / -88 dBu, Fs 48 kHz, ST main off *Measured with A-weighting filter
- Crosstalk: -100 dB, adjacent INPUT/OUTPUT channels, Input Gain = -6 dB *Measured with a -30 dB/octave filter @ 22 kHz
- Heat Dissipation: 100 – 240 V, 50/60 Hz. 43.5 kcal/h
- Power Requirements: 100 – 240 V, 50/60 Hz
- Power Consumption: 50 W
- Dimensions (W x H x D): 480 x 88 x 364 mm (18.5 x 3.5 x 14.4″)
- Weight: 5.7 kg (12.6 lbs)
The Yamaha TIO 1608-D2 Stagebox with Dante is a professional-grade audio mixing device that is renowned for its exceptional sound quality and reliable performance. It boasts a sturdy build and high-quality components, ensuring it withstands the rigors of live performances and studio recordings.
Equipped with Dante digital media networking technology, this Stagebox delivers ultra-low latency audio transmission and seamless integration with other Dante-equipped devices. This makes it an integral component in a professional audio setup, optimizing sound performance at every level.
Whether you’re a professional sound engineer or an audiophile, the Yamaha TIO 1608-D2 Stagebox with Dante delivers a performance that exceeds your expectations. Experience crisp, clear audio, and mix sound with precision with this unparalleled audio mixing device. So, make it a part of your professional audio setup.
The Yamaha TIO 1608-D2 Stagebox with Dante is a high-quality tool that enhances your audio mixing capabilities, whether you are in a live or studio setting. Designed by Yamaha, a leader in professional audio, this stagebox brings superior sound and advanced networking features to your system.
Offering 16 inputs and 8 outputs, the Yamaha TIO 1608-D2 provides ample connectivity options. This stagebox uses Dante networking by Audinate, which allows you to transmit high-resolution audio data over a standard Ethernet network. This offers flexibility, scalability, and reduces the need for bulky analog connections. With Dante, you can easily integrate the TIO 1608-D2 into your existing audio infrastructure, ensuring seamless operation and impeccable sound quality.
But the Yamaha TIO 1608-D2 doesn't just stop at connectivity. It also boasts exceptional audio quality. The Yamaha's renowned preamps deliver clean, transparent sound that captures the nuances of your performance. Additionally, this stagebox is built with rugged construction to withstand the rigors of live use, making it a reliable choice for touring professionals and fixed installations alike.
For those who manage complex audio systems, the Yamaha TIO 1608-D2 offers control flexibility with its compatibility with Yamaha's RIVAGE PM, CL, and QL series consoles. This makes it an affordable yet powerful expansion option for large-scale audio setups. So, whether you are setting up a major concert, a broadcast, or a sophisticated studio recording environment, the TIO 1608-D2 ensures that your audio signals are handled with the utmost precision and reliability.
Another standout feature of the Yamaha TIO 1608-D2 is its seamless integration with Yamaha's Tio1608-D, Ri8-D, and Ro8-D I/O racks, providing an unparalleled level of system scalability and flexibility. This means that you can expand your system as your needs grow, ensuring future-proofing and investment protection.
The Yamaha TIO 1608-D2 also includes user-friendly software for monitoring and control. Yamaha's dedicated software provides a straightforward interface for managing your networked audio, making the setup and configuration process efficient and stress-free. This software also allows for remote operation, so you can adjust settings from anywhere in the venue, ensuring the best possible sound for your audience.
In conclusion, the Yamaha TIO 1608-D2 Stagebox with Dante is an essential component for any professional audio setup. Its combination of superior sound quality, robust build, and advanced networking capabilities makes it a top choice for audio engineers who demand the best. So, if you are looking to take your audio system to the next level, the Yamaha TIO 1608-D2 will not disappoint.
