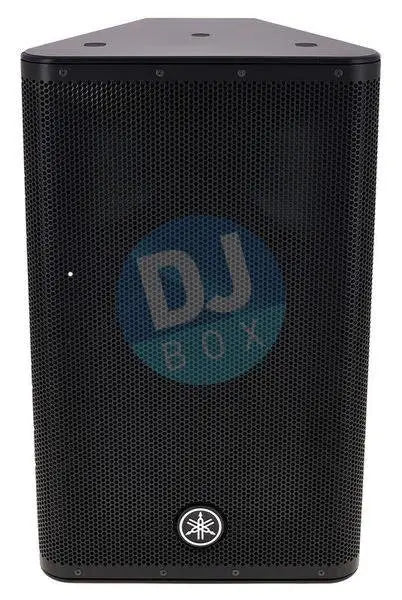

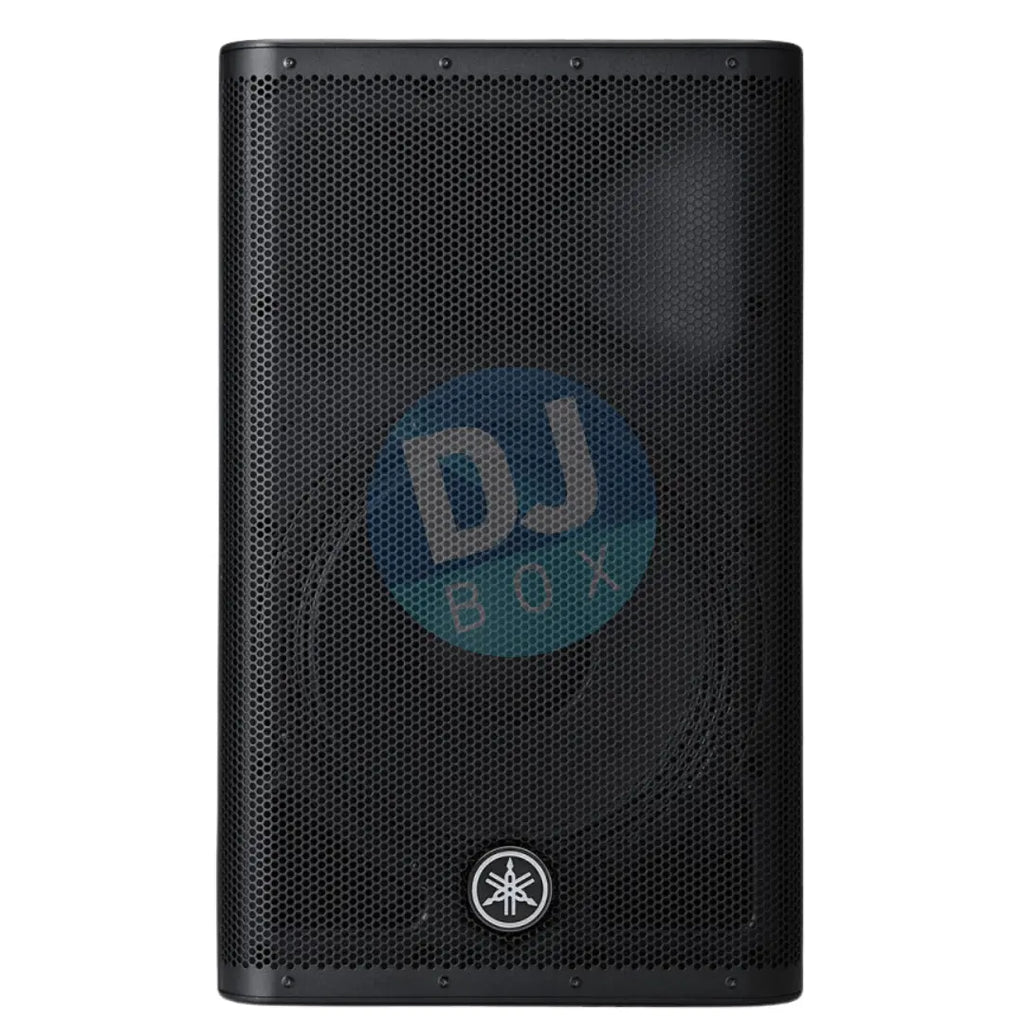

Yamaha DXR12 MKII Active loudspeaker
Description
Yamaha DXR12 MKII Active loudspeaker
The Yamaha DXR12 MKII is an extremely high-power loudspeaker that is capable of producing a maximum SPL of 134dB with its impressive 1100W of power. It is the perfect solution for live sound applications that demand wide bandwidth and extremely high-resolution sound.
Since its inception, the DXR Series has long signified a confluence of raw power and technological innovation that reliably harnesses and delivers impressively high output with superior quality and clarity. The DXR mkII Series powered loudspeakers are the newly upgraded models of the series that add even more SPL and feature a larger, yet much lighter 1.75” Neodymium HF compression driver for extremely clear voice reproduction and musicality. Once again our team worked in tight collaboration with touring loudspeaker specialists NEXO, adding crucial insight and expertise that led to design improvements based on the ever-evolving demands of sound reinforcement professionals.
Whether for fixed applications or mobile live performances - whatever direction you want to take your sound - the DXR mkII Series is up to the task, combining raw power with our own proprietary advanced DSP functions for all the reliability and outstanding clarity you’ve come to expect from the DXR Series… only MORE.
The DXR12mkII is 1100 Watts of audio fidelity. Picking up where the initial DXR series left off, the mkII goes even further. Packed with innovative DSP and features, from a built-in mixer to an intelligent multi-band compressor. The DXR12mkII does everything it can to ensure you're always sounding your best. Topped off with a versatile range of mounting options. And a durable yet compact ABS enclosure. The DXR12mkII is a PA speaker that is as powerful as it is precise.
Raw power
With a 1100 Watt Class-D amplified design, the Yamaha DXR12mkII 12'' Active PA Speaker is powerful enough for any live environment. An intelligent multi-band compressor calculates level-based EQ adjustments. Ensuring consistent clarity. And with the ability to handle obscene sound pressure levels, you can be confident that the DXR12mkII won't be bested.
Fine-tuned
The DXR12mkII is clever enough to give you the best sound possible. Yamaha's innovative FIR-X Tuning intelligently manages frequencies. Combatting phase cancellation, ensuring clarity, and with exceptionally smooth crossover. Meaning you'll always sound exceptional.
Mixed in
Getting a great sound couldn't be easier, thanks to the integrated 3-channel mixer. Each channel has its own volume control to balance your sources. Once you've got a great balance, the sound output can be adjusted to different spaces and applications, with easy contouring preset switches.
Versatile design
You can use the DXR12mkII in a variety of configurations. For floor monitoring applications, a 50° angle is integrated into the cabinet design for easy placement. Two 35 mm speaker pole mounts let you mount the speaker at an angle of either 0°, or 7°.
Specifications:
- Speaker Type: 12" 2-way, Bi-amp powered speaker, Bass-reflex type
- Frequency Range (-10dB): 52Hz - 20kHz
- Nominal Coverage: H - 90°; V - 60°
- Components (LF): Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite
- Components (HF): Diaphragm: 1.75", Type: 1" throat compression driver, Magnet: Neodymium
- Crossover: FIR-X tuning™ (linear phase FIR filter)
- Output Power: Dynamic: 1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
- Maximum Output Level (1m; on axis): 134dB SPL

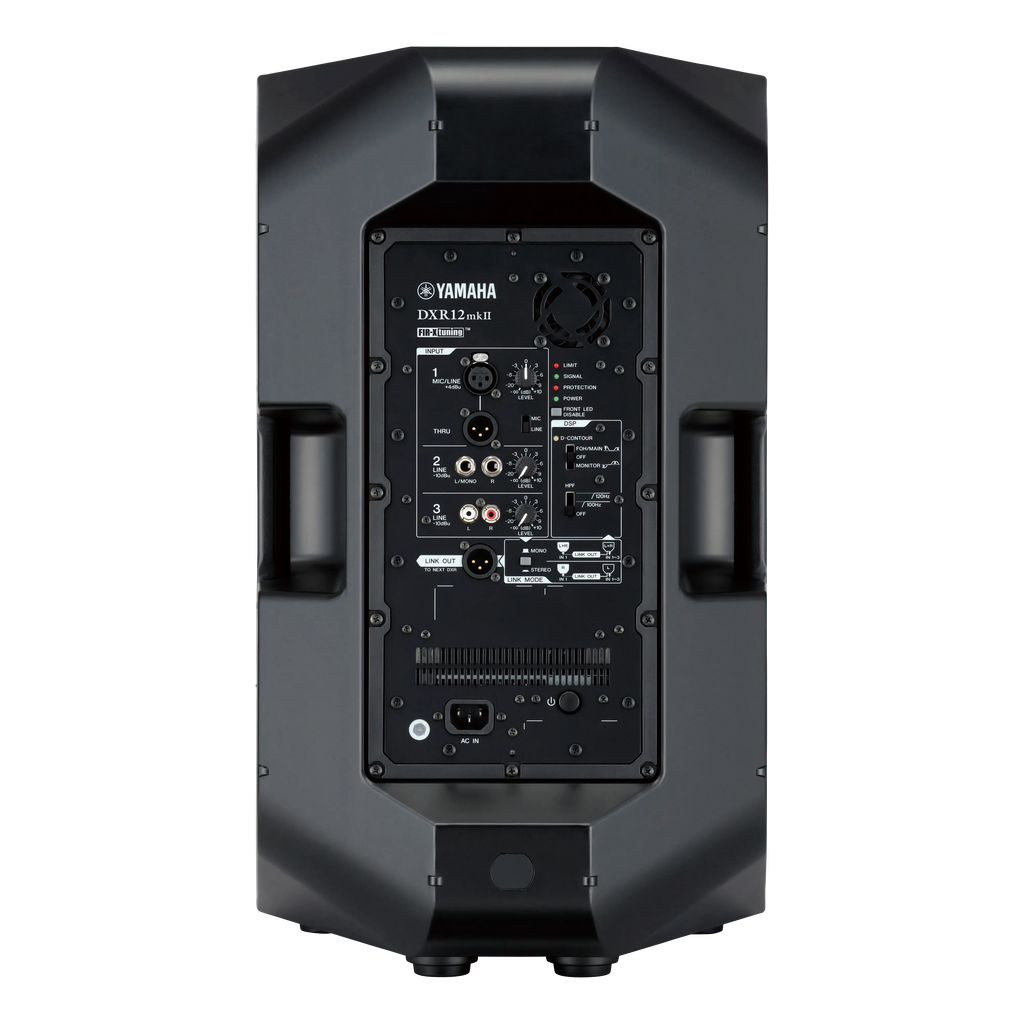

- I/O Connectors: INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1
- Processors: D-CONTOUR :FOH / MAIN, MONITOR, OFF
- Power Requirements: 100V - 240V, 50Hz/60Hz
- Power Consumption: 110W
- Flying and Mounting Hardware: Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
- Pole Socket: 35mm with 2-way features (0 or 7 degrees)
- Material: ABS (Matte Finish, Black)
Weights/Dimensions:
- Width: 362mm (14 2/8")
- Height: 601mm (23 5/8")
- Depth: 350mm (13 6/8")
- Weight: 18.6kg (41.0lbs)
