M-Audio M-Track 2x2 Audio Interface Details
Description
M-Audio M-Track 2x2 Audio Interface Details

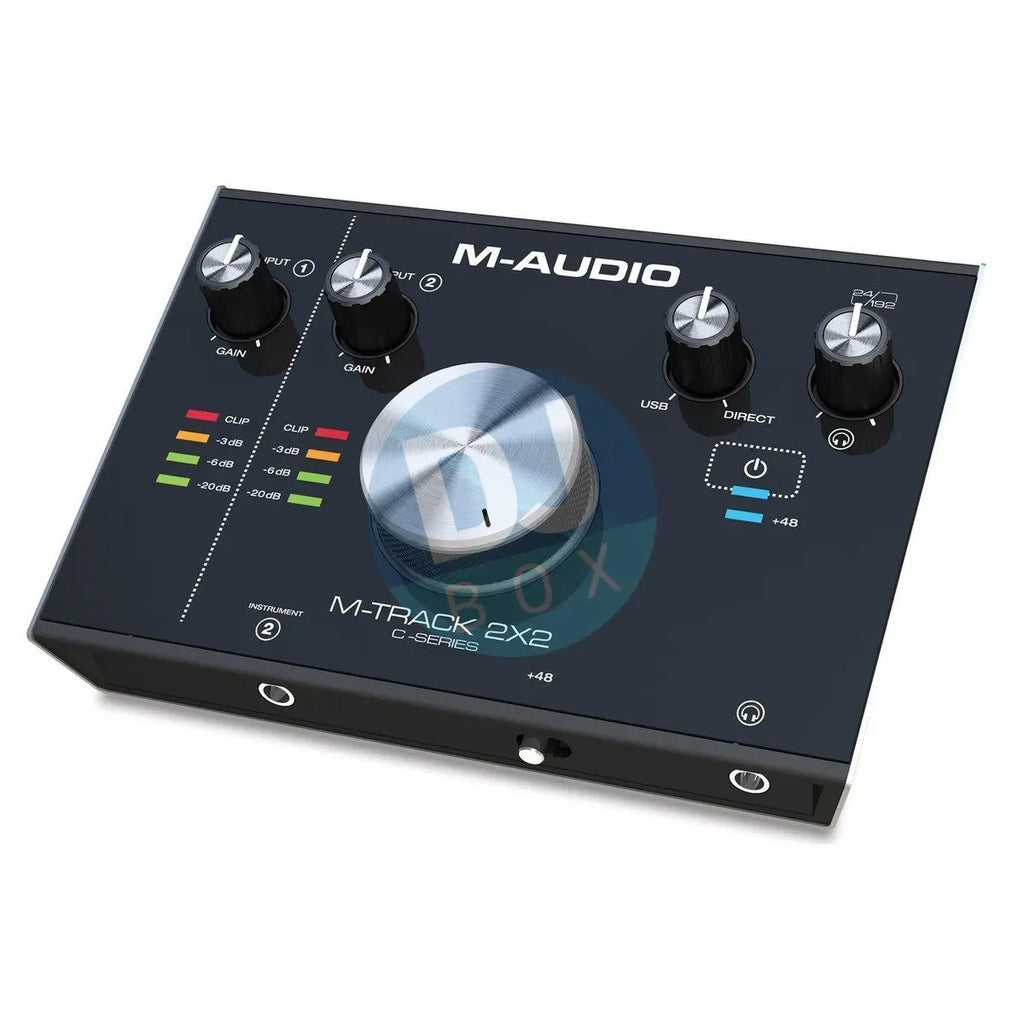

The M-Audio M-Track 2x2 Audio Interface is a 24-bit/192kHz USB-C high speed 2x2 audio interface featuring high-headroom 'Crystal' mic pre-amps and exceptional audio performance on the inputs. This interface is ideal for monitoring and recording purposes with its studio-quality audio output and dedicated XLR/TRS Combo input. Also featuring a headphone out with independent level control and free software (including a copy of Steinberg Cubase LE), the M-Track Solo is perfect for anyone needing a recording and monitoring interface.
Free Software Included
The M-Track 2x2M comes complete with free software to help you record, edit and add effects to your audio, opening up a world of new possibilities for making music. This bundle of free software includes: AIR Creative Collection FX (20 World Class FX AU/VST plugins as made famous by Pro Tools®), AIR Strike, AIR Xpand!2 and AIR Mini Grand. Additionally the M-Track 2x2M features a free copy of Steinberg's Cubase LE, allowing you to record, mix and master straight out of the box, giving you a versatile digital audio workstation to get you started.
Ideal For Recording And Monitoring
Featuring a 2x2 configuration allows you to connect your external devices quickly and easily to this all-in-one audio interface. The M-Track 2x2M features two XLR/TRS combo inputs and two instrument inputs, making it ideal for recording vocal and instrument pieces. Also featured is a 5-pin MIDI I/O for connecting any external MIDI devices you may want to use such as keyboards and controllers. The USB-C high-speed audio interface features zero-latency monitoring with USB/Direct Balance control. Additionally the 2x2M features built in +48V phantom power, allowing you to capture studio-quality recordings from a condenser microphone, ideal for digital musicians.
Exceptional Audio Quality
M-Audio's C-Series focus on high quality signal capturing and versatility. The integrated pro-grade 'Crystal' Preamps deliver transparent, low-noise audio designed for professional audio applications. This allows you to capture every bit of audio as it was intended to be heard, capturing every nuance of the original signal for truly exceptional audio fidelity. To improve performance and efficiency, M-Audio have introduced zero latency thanks to improvements in technology and design. This allows you to capture vocals or instrumental audio while monitoring in near real-time, ideal for instrument players and vocalists.
Studio-Grade Quality
The M-Track C-Series gets its name from its high speed USB-C port that delivers exceptional signal quality and a speedy performance. The interface features pristine A/D converters that provide 24-bit resolution digital audio, allowing you to capture every nuance of your performance. It also features a sample rate ranging up to 192kHz, ensuring crystal clear recordings that stay true to the source audio. The USB-C combined with the USB/Direct Balanced knob resulting in latency-free recording and monitoring.
M-Track Series
The M-Track series from M-Audio is relatively new to the scene, with M-Audio developing the range for use with audio recording and monitoring purposes. These new interfaces have been designed to give composers and musicians of any level the ability to participate and introduce themselves the world of computer-based recording, with this intuitive and easy-to-use interface.
Features
24-bit/192kHz resolution for professional recording and monitoring
All new Crystal Preamps deliver pristine, transparent sound
+48v Phantom Power accommodates all microphone types
Hi-Speed USB connection with USB/Direct balance knob for zero-latency monitoring
Includes both standard USB and USB-C connection cables
Dedicated XLR+¼" TRS combo input and ¼" instrument High-Z input
Rugged metal chassis; large central control for easy volume adjustment; table-top design provides easy access to critical controls
Stereo ¼" outs; ¼" headphone out with independent level control
Included software:
AIR Creative FX Collection (20 world-class FX AU/VST plugins as made famous by Pro Tools®)
AIR Strike
AIR Xpand!2
AIR Mini Grand
Steinberg Cubase LE
Specifications
Mic Input 1 (Balanced XLR)
Frequency Response: 20 Hz – 20 kHz (+0.1 dB)
Dynamic Range: 104 dB (A-weighted)
Signal-to-Noise Ratio: 104 dB (+1.0 dBu, A-weighted)
THD+N: 0.003
Preamp EIN: -128 dBu (max gain, 150 Ω source, A-weighted)
Max Input Level: +1.5 dBu
Gain Range: 55 dB
Line Input 1 (Balanced ¼'' [6.35 mm] TRS)
Frequency Response: 20 Hz – 20 kHz (+0.05 dB)
Signal-to-Noise Ratio: 101 dB (1 kHz, +4 dBu, A-weighted)
THD+N: 0.003
Max Input Level: 16 dBu
Gain Range: 55 dB
Inst Input 2 (Unbalanced ¼'' [6.35 mm] TS)
Frequency Response: 20 Hz – 20 kHz (+0.05 dB)
Dynamic Range: 100 dB (A-weighted)
Signal-to-Noise Ratio: 102 dB (+ 4 dBu, A-weighted)
THD+N: 0.004
Max Input Level: 6 dBu
Input Impedance: 1 M Ohms
Gain Range: 24 dB
Main Output, L and R (Balanced, differential ¼'' [6.35 mm] TRS)
Frequency Response: 20 Hz – 20 kHz (+0.06 dB)
Dynamic Range / Signal-to-Noise Ratio: 102 dB (A-weighted)
THD+N: 0.005
Max Output Level: +7 dBu (1 kHz, -1 dBFS)
Headphone Output (Impedance-Balanced ¼'' [6.35 mm] TRS)
THD+N: 0.005
Output Impedance: 10 Ohms
General
Power: USB-bus-powered
Dimensions: 6.0" x 2.8" x 7.8"
