M-Audio BX5 D3 Powered Studio Reference Monitor


Tax included Shipping calculated at checkout

Sold out

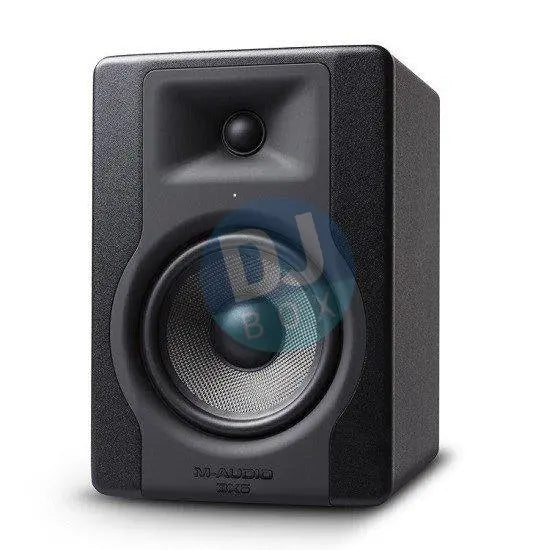

M-Audio BX5 D3 Powered Studio Reference Monitor


Introducing M-Audio's BX5-D3 Studio Monitor Speakers – the superior quality successor to the renowned D2 range. These monitors feature an incredible build-quality including robust and durable Kevlar woofers built to military-grade specification. The result is a monitor that aims to reduce against undesirable "cone breakup" and other unwanted low-end resonance. The cabinet is manufactured to create a lightweight speaker that still fights against unwanted cabinet resonance.

The BX5-D3 features a silk dome treated tweeter providing you with clarity on high-end frequencies. This combined with the BX drivers combine to give an accurate frequency coverage allowing you to mix your music with dynamic accuracy. The tweeter is attached to a custom made waveguide that helps to direct frequencies more accurately and to prevent against the unwanted scattering of frequencies. In addition to this, the BX5's also combats against audible air turbulence that comes from when bass is played back at a high-SPL.

M-Audio's BX5 D3 is powered by two Class A/B internal amps that drive the tweeter and woofer separately. A precision-tuned crossover means that each driver only deals with frequencies that it produces with the most efficiency. This helps to create a more coherent image of the overall frequency spectrum. In addition to this, the BX5-D3 features the iconic M-Audio Keyhole design and flexible input functionality with both XLR and ¼ balanced inputs meaning this connect to virtually any mixer or interface setup.

Get your pair of M-Audio BX5-D3 Studio Monitor Speakers today for untold clarity and a nice flat bass response. This monitor offers incredible performance for one in this price bracket.

Key Features:

Bi-amplified design with 100 watts (60 LF, 40 HF) for powerful, accurate sound
5" Kevlar low-frequency driver with high-temp voice coil and damped rubber surround
1" natural silk dome tweeter delivers superb transient details
New computer-optimized tweeter waveguide for precise imaging
Acoustic Space Control to fine-tune low-end response to your room
Optimized rear port for extended low-frequency response
XLR balanced and 1/4" balanced/unbalanced inputs for connecting audio interfaces, mixers, synthesizers DJ gear, and more
Volume control enables you to dial in the perfect monitor playback level
Ultra-wide range 52-35kHz frequency response covers full musical spectrum
Front panel LED shines brightly when speaker is positioned at ideal monitor angle

Technical Specifications

Type - 2-way near-field studio reference monitors
Low Freq Driver - 5 inch (127mm) Kevlar curved cone with high temperature voice coil and damped rubber surround. Magnetically shielded

High Freq. Driver1 inch (25mm) magnetically shielded natural silk domeFrequency Response52 Hz –35 kHz

Crossover Frequency - 2.0kHz
Low Freq. Amplifier - Power65W
High Freq. Amplifier - Power55W
Maximum Peak - SPL105dB
Input Sensitivity - 85mV pink noise input produces 96dBA output SPL at 1

Input Connectors:

1x XLR balanced input connector
1x TRS balanced/unbalanced input connector

Input Impedance - 10kΩ balanced, 20kΩ unbalanced
Polarity - Positive signal at + input produce outward LF cone displacement
Protection - RF interference, output current limiting, over temperature, turn on/off transient, subsonic filter, external mains fuse


Voltage - 100–120V, 50/60 Hz220–240V, 50/60 Hz
Consumption - 100WFuse220–240V~ T1AL 250V100–120V~ T1.6AL 250VCabinet:Vinyl-laminated high-acoustic-efficiency MDF

Dimensions - (width x depth x height)6.9" x 7.8" x 10"176 x 197 x 254 mmWeight13.2 lbs, 6.0k
