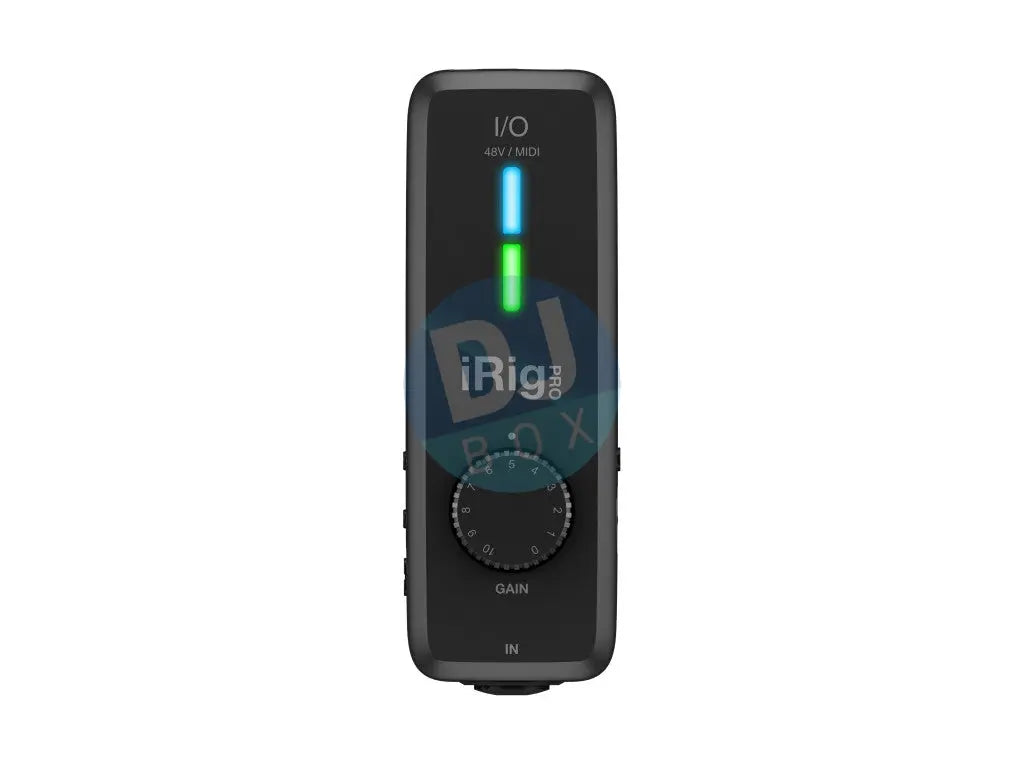

IK Multimedia iRig Pro I/O
The ultra-compact professional audio/MIDI interface for all your gear
Now record with any of your gear on the go, and monitor in real time with any compatible device! That’s iRig Pro I/O, the ultra-compact professional quality audio and MIDI in/out for your mobile recording life!

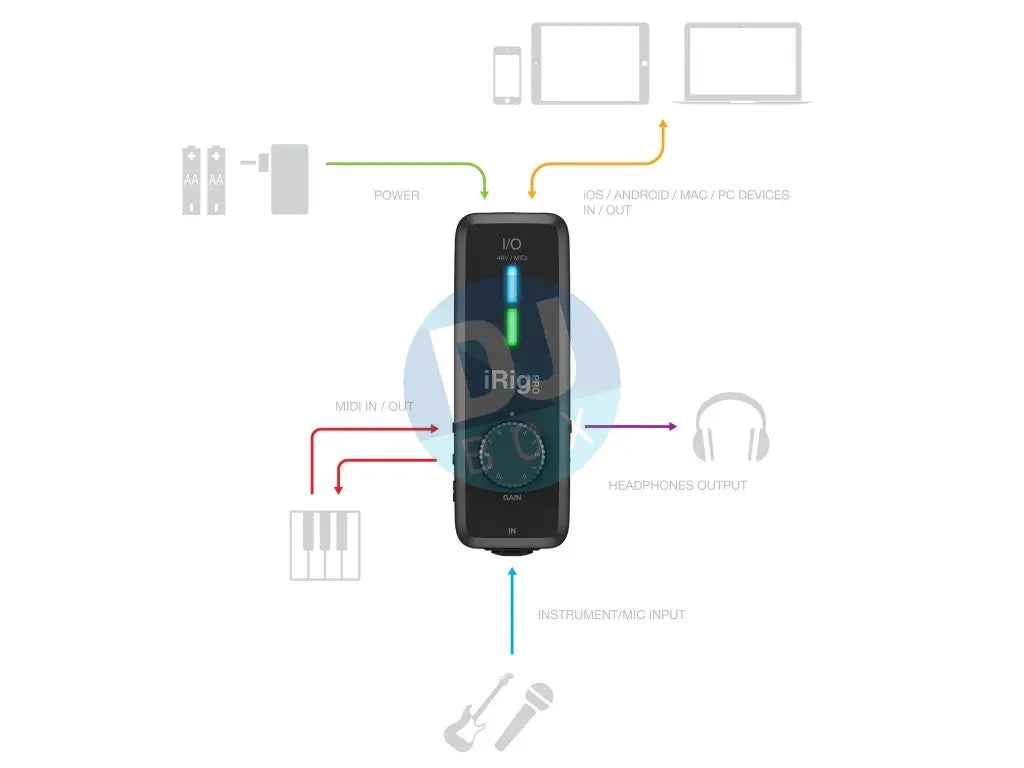

iRig Pro I/O is the next generation of the iRig Pro — the first mobile interface for connecting all of your studio gear to your iPhone, iPad, Mac, PC or Android device to play and record on the go.
iRig Pro I/O is a pocket-sized full-featured audio and MIDI interface that gives you 24-bit/96kHz recording studio quality sound everywhere you go with a few additional essential features for mobile recording.
First, iRig Pro I/O is designed to be “plug and play” easy to use with all of your gear — studio mics, vocal performance mics, guitars, basses, keyboards — whatever it is, iRig Pro I/O can handle it.

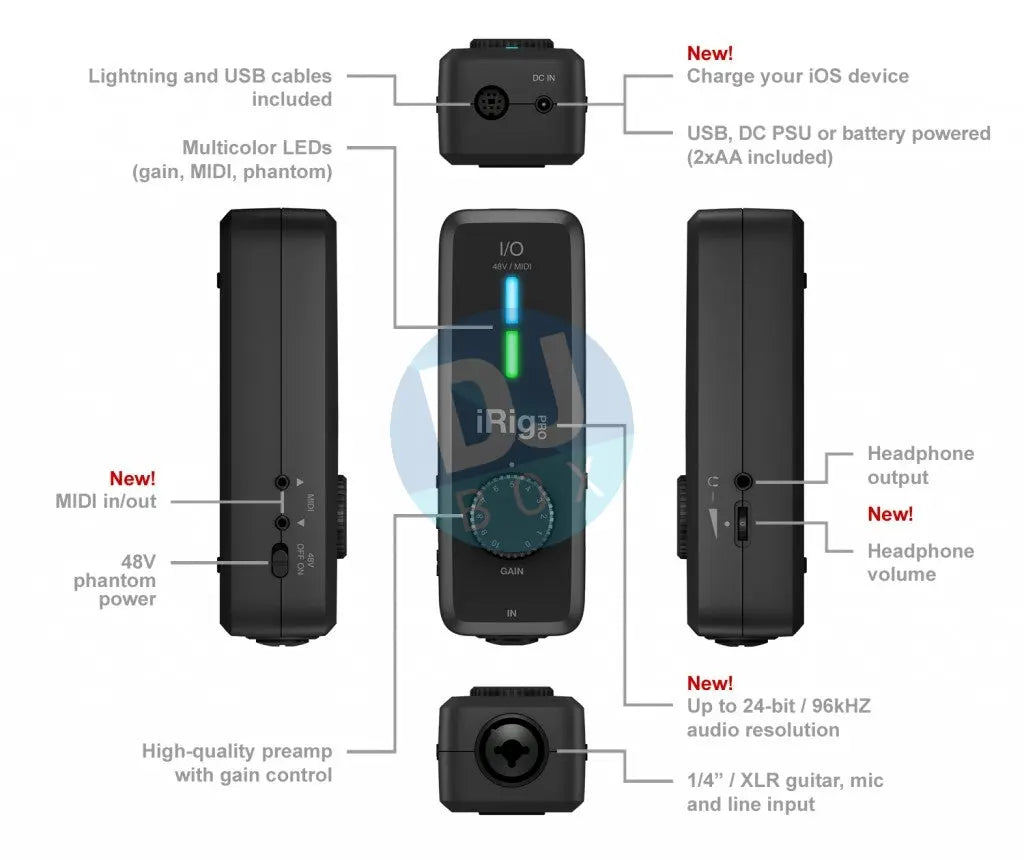

Second, iRig Pro I/O features a new 1/8" stereo headphone out with preamp and level control, making it compatible with even the most recent iOS devices. Plus, when used with the optional DC power supply, iRig Pro I/O will charge your iPhone or iPad while in use for unlimited playing and recording time. iRig Pro I/O also features a new MIDI Out jack that gives you even more flexibility and control over your outboard MIDI gear.
Bottom line: iRig Pro I/O is the most versatile and intuitive “all in one” mobile interface available.
Power up

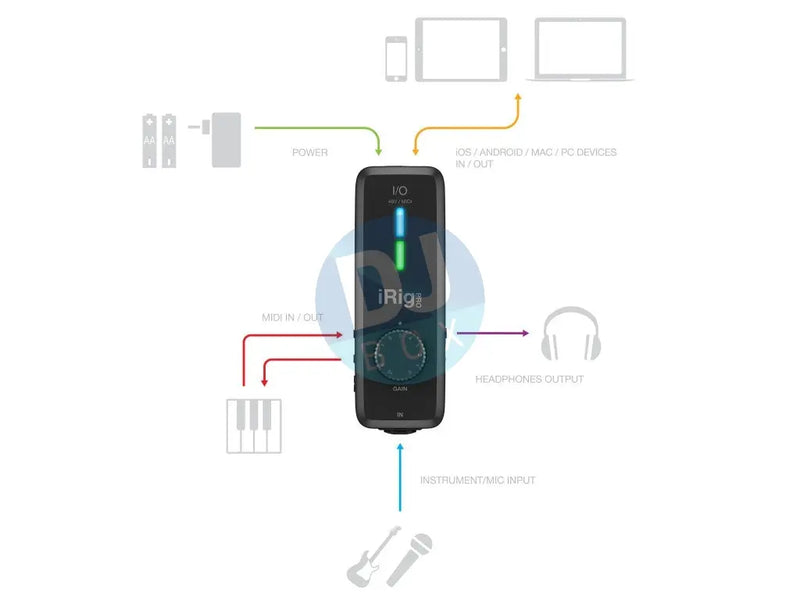

iRig Pro I/O has multiple power options depending upon your recording preferences. When used as a standalone interface for iPhone, iPad or Android device, you can power iRig Pro I/O with 2 – AA batteries that also provide switchable 48V phantom power for condenser mics. When used with iRig PSU 3A*, the optional DC PSU, iRig Pro I/O will charge your iPhone or iPad while plugged in for endless or extended recording and playing sessions. Buy the iRig PSU 3A now!* When used with a Mac/PC, iRig Pro I/O gets its power from the USB port and the connected laptop. Whichever method you choose, iRig Pro I/O will adapt and is ready to go at a moment’s notice.
Specs
iRig Pro I/O Specifications
Microphone Input
-
Microphone Input: balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
-
Microphone Input Level: from 6 mVpp to 1.4 Vpp
-
Microphone Input Impedance: 3.2 kOhms
-
Gain Range: 40 dB
-
Phantom Power: +48V ± 4V
-
Frequency Response: 20 Hz - 20 kHz +/-1.5dB
-
Input Noise: -103 dB(A), -97 dB RMS
Instrument Input
-
Instrument Input: unbalanced, Hi-Z, TS 1/4" Jack, Tip: signal / Shield: ground
-
Instrument Input Level: from 30 mVpp to 6.9 Vpp
-
Instrument Input Impedance: 1 MOhms
-
Gain Range: 27 dB
-
Frequency Response: 20 Hz - 20 kHz +/-1.5dB
-
Input Noise: -103 dB(A), -97 dB RMS

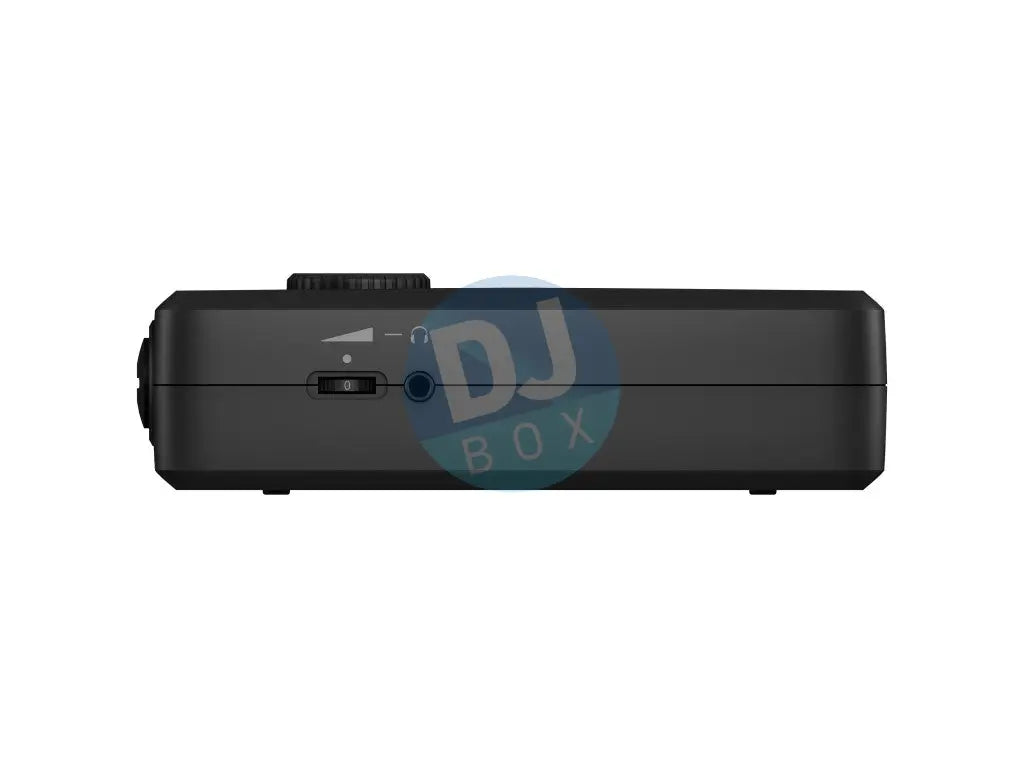

Stereo Headphone Output
-
Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground
-
Headphone Level Control numbered thumbwheel
-
Headphone Level Power 100mW into 50 Ohms
Stereo Headphone Output
-
Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground
-
Headphone Level Power 100mW into 50 Ohms

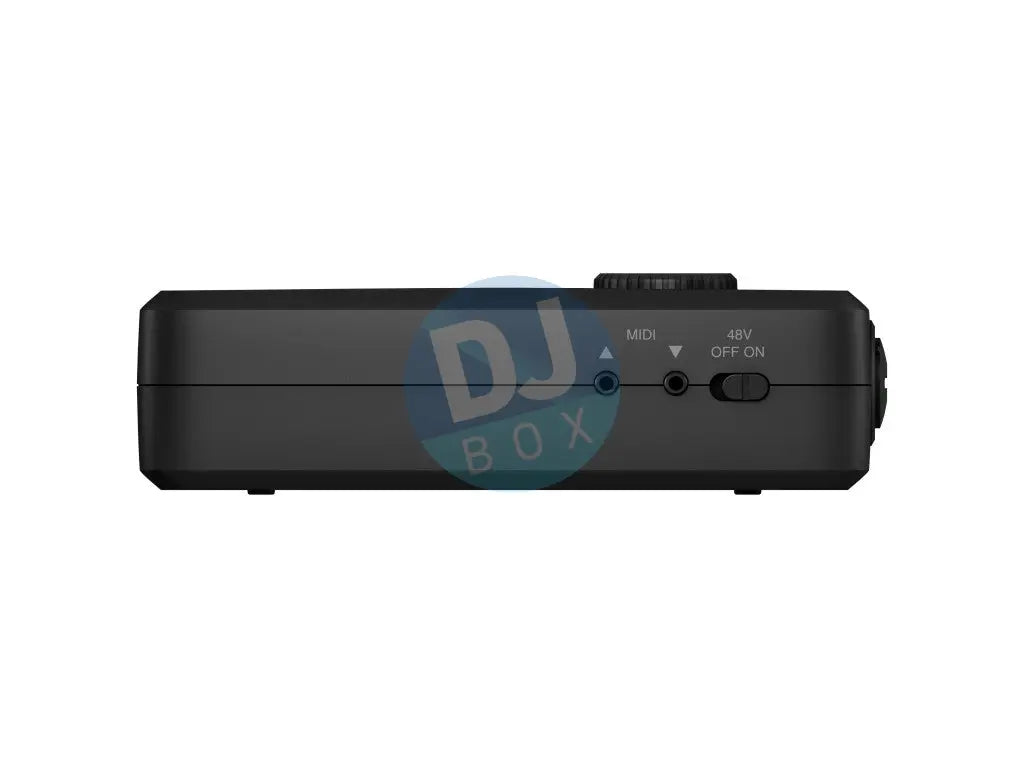

MIDI Input/Output
-
Connector: 2x2.5mm TS Jack
Other Input/Output
-

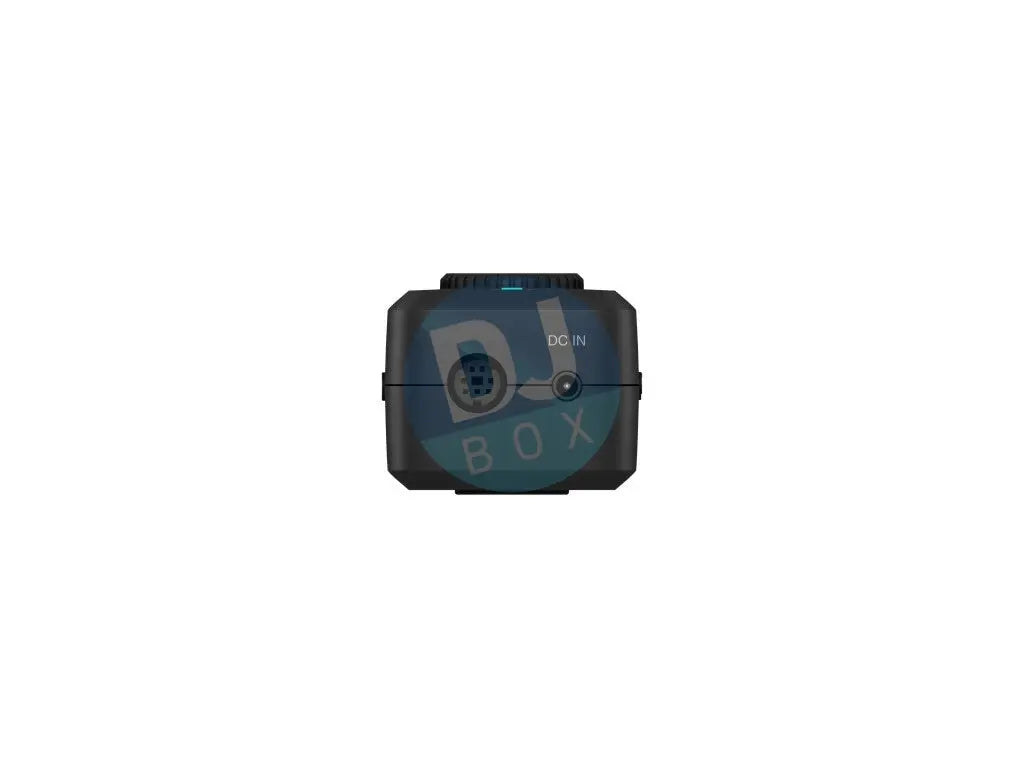

DC barrel: 1x DC barrel. For power and device charging.
-
Device Connector: mini-DIN
Package includes
- iRig Pro I/O universal Audio-MIDI interface
- Lightning to Mini-DIN connection cable with charging features (60cm/23.62")
- USB-A to Mini-DIN connection cable (60cm/23.62")
- USB-C to Mini-DIN connection cable (60cm/23.62")
- 2.5mm TRS male to MIDI female adapter (10cm / 3.9")
- 2 x 1.5V AA Battery
- Velcro strip
Dimensions
- Size: 43mm/1.69" x 127mm/5" x 37mm/1.46"
- Weight: ~120g/4.23oz (batteries excluded)
iOS Devices
Made for: iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (12.9-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad mini, iPad 4th generation.
Also compatible with all newer iPhone, iPad and iPod touch models.
Computers
Mac®: Mac OS X 10.6 or later. One free USB port.
Windows®: One free USB port. For low latency, the IK Multimedia's iRig audio driver must be installed. Download the iRig ASIO driver here.
Android Devices
Compatible with Android devices running Android 5 or later and with USB digital audio capabilities.
Micro-USB-OTG to Mini-DIN cable (sold separately) is required.
* Use only the specified AC adaptor
Use only the specified AC adaptor (iRig PSU 3A) and make sure the line voltage at the installation matches the input voltage specified on the AC adaptor's body. IK Multimedia will not be responsible of any damage caused by usage of any AC adaptor other than the specified one (iRig PSU 3A). The usage of AC adaptors other than the specified one (iRig PSU 3A) could compromise the user experience in terms of: Safety risk, Apple device charging performances, Noise performances.
