Citronic Dual 15-band Graphic EQ


Tax included Shipping calculated at checkout

In stock

Dual 15-band Graphic EQ

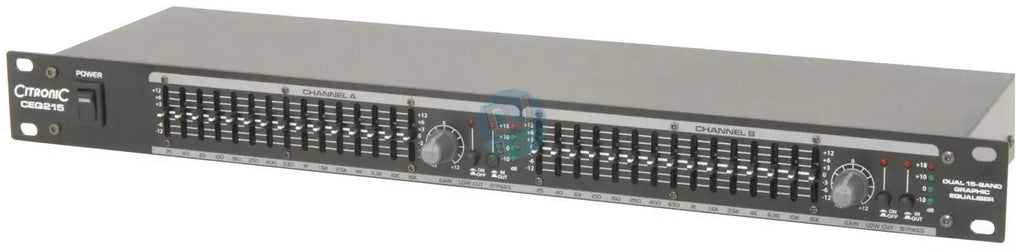

The CEQ215 is a 19" rack mounted dual 15-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 25Hz to 16kHz for accurate audio spectrum control.

  • 2 x 15-band 2/3 octave ISO spacing
  • RF filtered servo-balanced inputs
  • Constant Q each band
  • Bypass switch for EQ comparison
  • Low-cut switch each channel
  • Gain control each channel
  • LED VU meters
  • 19" rackmount 1U
  • Power supply115/230Vac, 50/60Hz (IEC)
  • Frequency response20Hz-20kHz
  • Input impedance : balanced40k Ohms
  • Input impedance : unbalanced20k Ohms
  • Output impedance : bal/unbal330 Ohms
  • Channel separation>50dB
  • Signal to noise ratio>102dB
  • THD0.005%
  • Dimensions 482 x 44 x 138mm
  • Weight 2.0kg
