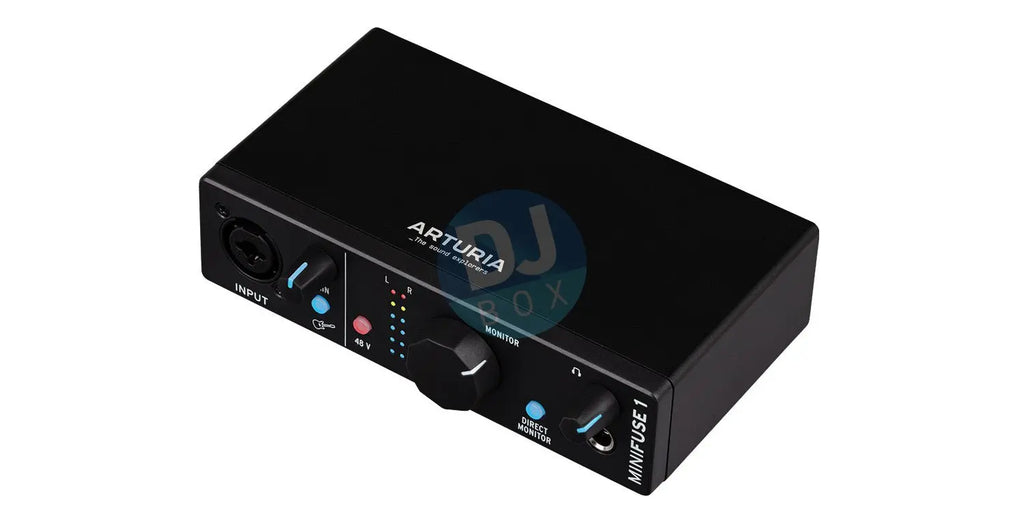

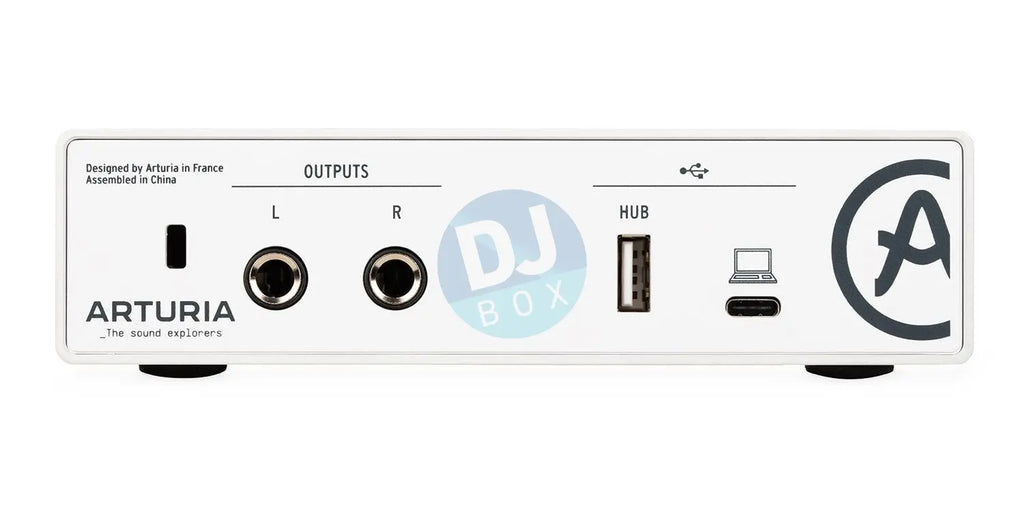

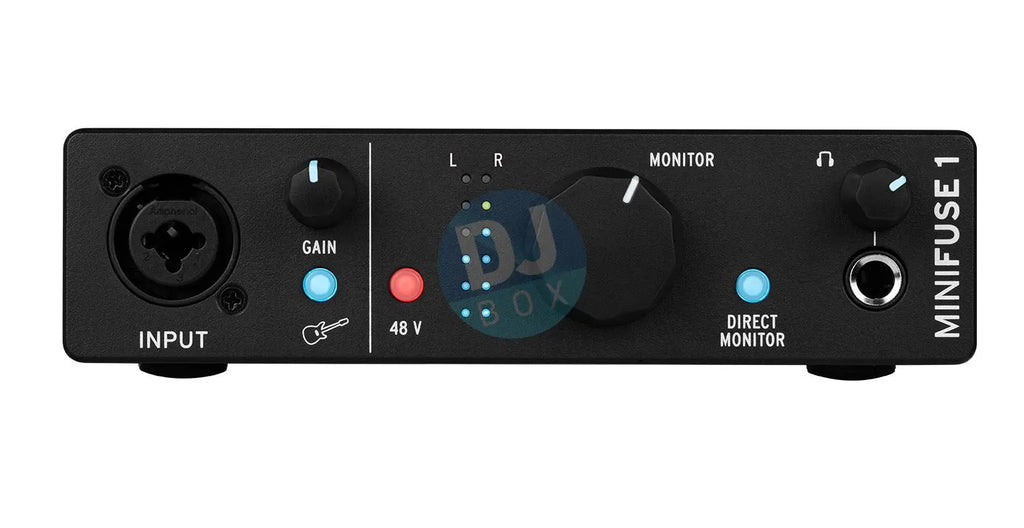

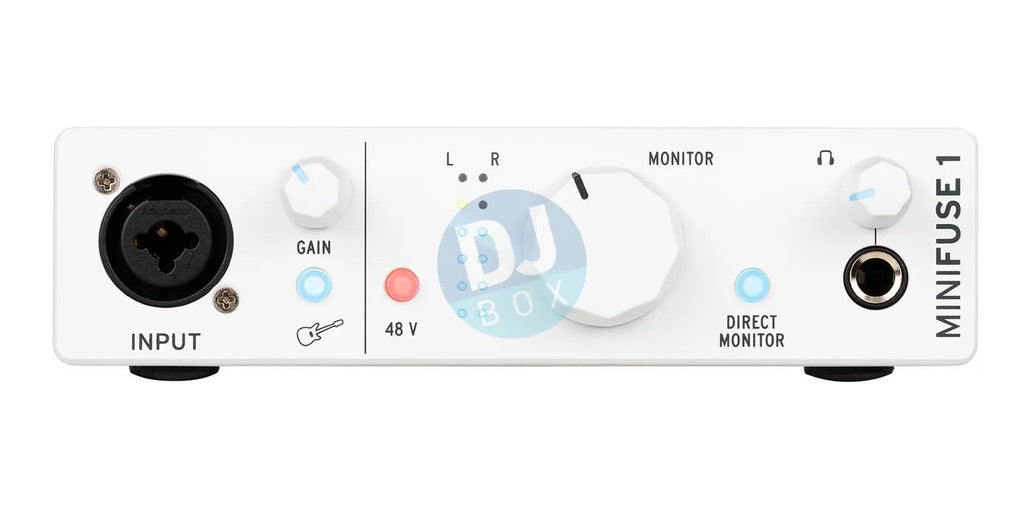

Arturia Minifuse 1
Time to record the song, the beat, or the content you’ve always wanted to. MiniFuse 1 is the compact audio interface designed to work for you, whatever your style. Get your sound out there with simple recording, a fun workflow, and all the creative software you’ll ever need.
MiniFuse means easy recording, world-class sound, an instant-results workflow, and the finest creative software you need to create the quality content you want. Your perfect audio companion for the desktop, studio, or on the go. What’s stopping you?
From careful selection of components through to manufacture & testing, the MiniFuse range is engineered to last.
Each interface is constructed with the most robust & reliable materials, and goes through over 200 reliability tests before approval, meaning better build quality, a better product for the environment, and better value for you.
Technical Specifications
Line Inputs
• Input impedance: 16kΩ
• Maximum input level: +22dBu
• Gain range: 56dB
• Frequency response 20Hz to 20kHz: +/-0.05dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -100dB typical (un-weighted)
Instrument Input
• Input impedance: 1MΩ on Tip
• Maximum input level: +11.5dBu
• Gain range: 56dB
• Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -91dB typical (un-weighted)
Microphone Preamps
• Input impedance: 2.5kΩ
• Maximum input level: +9dBu
• Gain range: 56dB
• Equivalent Input Noise (EIN): -129dB typical (A-weighted)
• Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -100dB typical (un-weighted)
Speakers
• Output impedance: 94Ω
• Maximum output level: +12dBu
• Frequency response 20-20kHz: +/-0.09dB
• Dynamic range: 107.5dB typical (A-weighted)
• THD+N @ 1kHz: -101dB typical (un-weighted)
Phones
• Output impedance: 10Ω
• Maximum output level: +11.4dBu
• Frequency response 20-20kHz: +/-0.09dB
• Dynamic range: 104dB typical (A-weighted)
• Power @ 33ohm: 137mW
Supported Sample rates
• 44.1kHz, • 48kHz, • 88.2 kHz,
• 96kHz, • 176.4kHz, • 19
