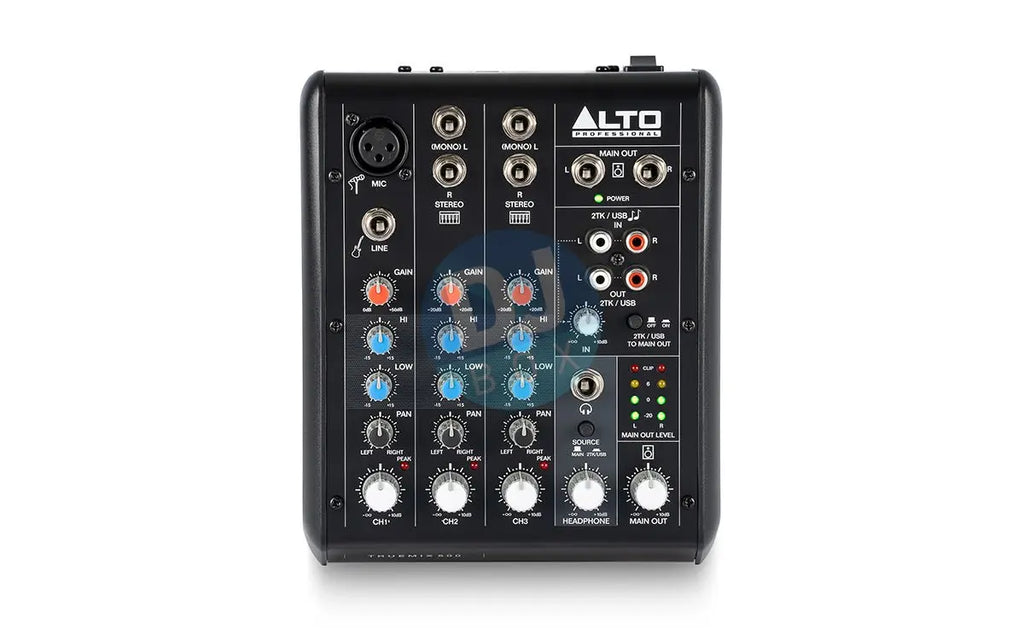

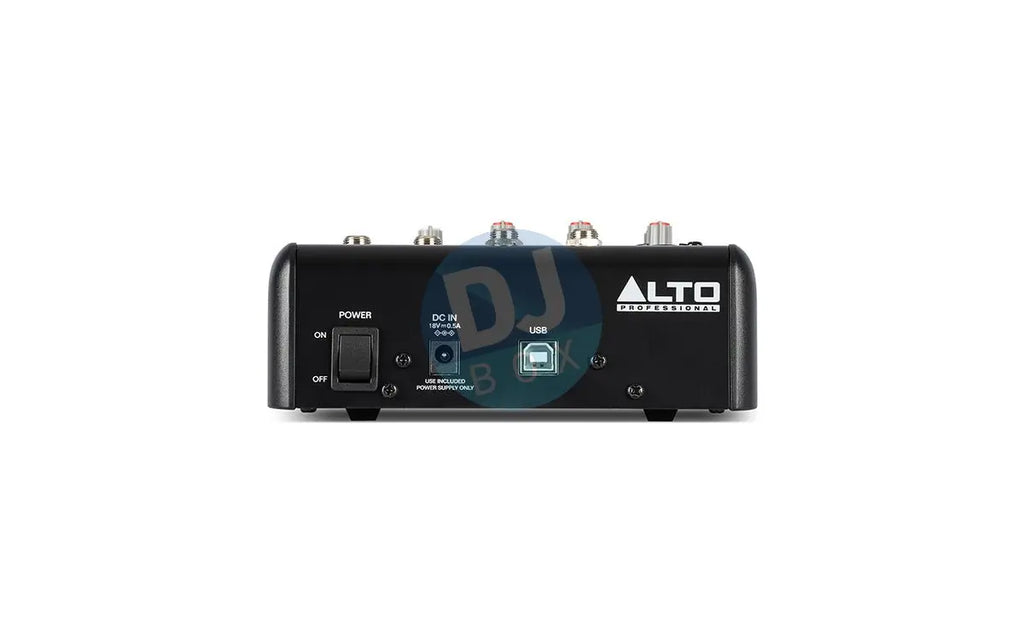

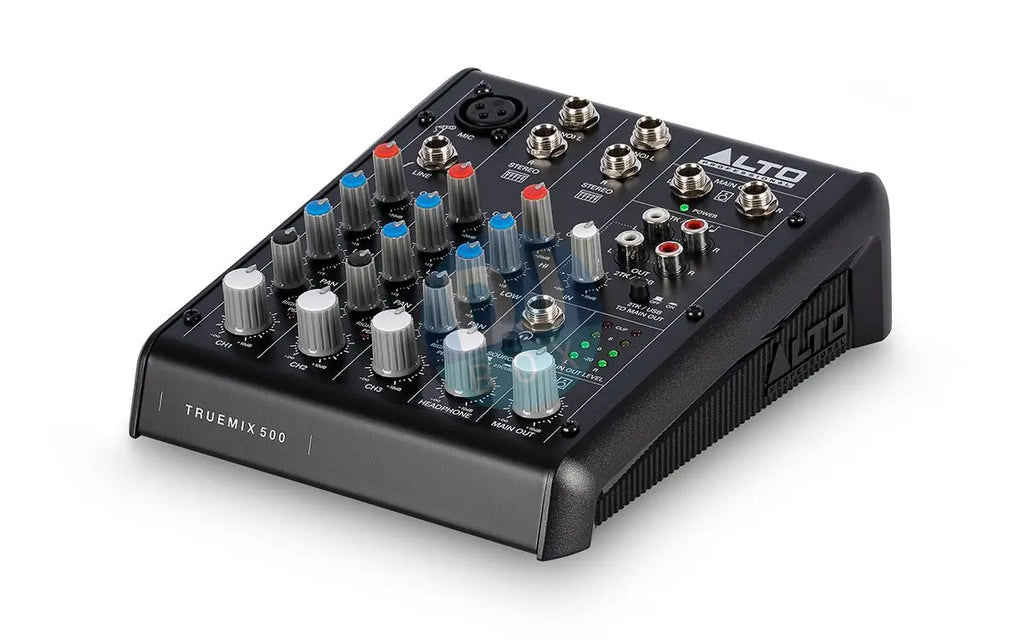

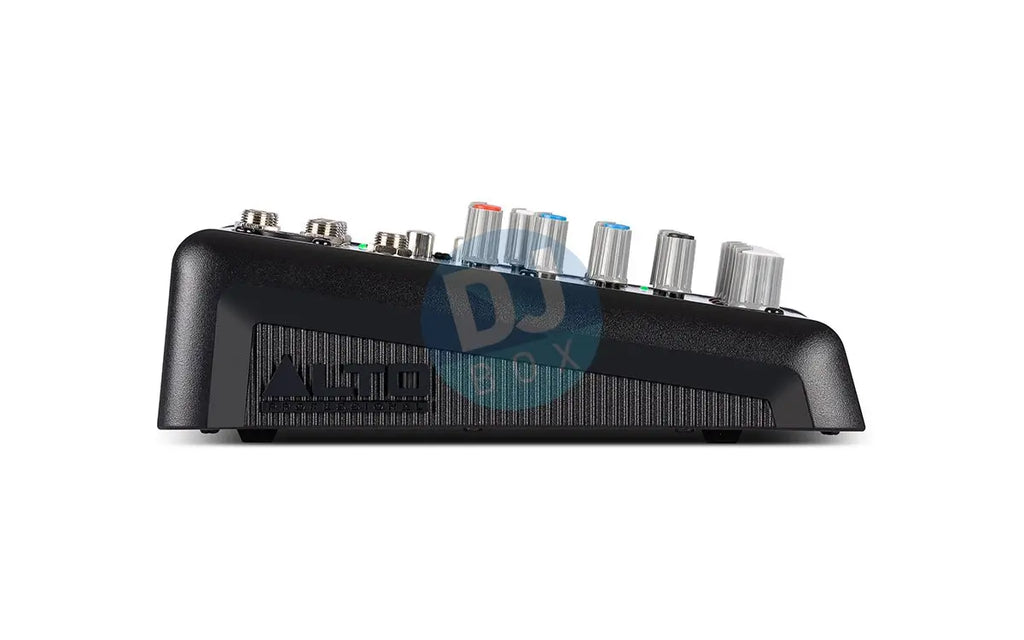

ALTO TrueMix 500
The ALTO TrueMix 500 Mixer is designed to deliver exceptional mixing performance, thanks to its powerful processing capabilities and intuitive design. Whether you're mixing audio for live performances, recording sessions, or multimedia projects, the ALTO TrueMix 500 delivers the versatility and flexibility you need to achieve the perfect mix.
With four XLR inputs, four stereo line inputs, and two stereo auxiliary inputs, the ALTO TrueMix 500 provides ample connectivity options for a wide range of sources. Each input channel features a built-in 3-band EQ and a gain control, allowing you to shape the audio to your liking and optimize the levels for each source. The mixer also includes built-in effects, including reverb, delay, and chorus, to add depth and atmosphere to your audio.
In addition to its powerful mixing capabilities, the ALTO TrueMix 500 offers advanced features such as Bluetooth connectivity, which allows you to stream music directly from your mobile device or laptop. The mixer also includes a USB port, enabling you to record directly to your computer or playback audio files from your media library.
Whether you're an experienced audio engineer or a novice user, the ALTO TrueMix 500 offers a user-friendly interface and intuitive controls that make it easy to achieve professional-grade audio. With its exceptional performance, versatility, and user-friendly design, the ALTO TrueMix 500 is the ideal mixer for a wide range of applications.
- USB I/O for audio playback and stereo recording
- 1/4” Main, Tape, and Headphone outputs
- Mic input channel with 48v phantom power and balanced line input
- Two stereo input channels with balanced 1/4” TRS jacks
- Two-band EQ on all channels
- 2-track inputs w/ assignable routing: Main Mix or Headphone Out
Simple-to-Use Analog Audio Mixing for Any Application
The Alto Professional TrueMix 500 is a portable mixer with a built-in stereo USB audio interface that delivers all the essential features you need for home recording, live streaming, podcasting, or performing. There are five analog inputs with high-headroom circuitry for minimal noise and clipping in your signal. The Mic Input Channel offers an XLR input that’s great for connecting a dynamic mic. This channel also has a balanced ¼” line input for connecting instruments and other line-level signals. There are also two Stereo Input Channels, each with dual balanced ¼” TRS inputs. These inputs are perfect for your line level audio sources. All channels feature a two-band EQ with colour coded knobs that make it easy to dial in your perfect sound when operating in low-light situations. Connecting the TrueMix 500 to your computer is also lightning fast, with plug and play connectivity on Windows and macOS. The TrueMix 500 is your perfect companion for no-nonsense audio mixing and recording on the go.
|
Frequency Response
|
All inputs: 20 Hz – 22 kHz (±1 dB)
|
|
THD+N (Total Harmonic Distortion)
|
All inputs: < 0.005% (@ 4 dBu, 1 kHz)
|
|
Gain Range
|
Mic inputs (Channel 1): 0 – 44 dB
Line input (Channel 1): 12 – 30 dBu
Line inputs (Channels 2/3): 0 dBu
|
|
Max Voltage Gain
|
74 dB (Mic Input to Main Out and 2TK Output)
80 dB (Mic Input to Phones Output)
30 dB (Line Input to Main Out)
|
|
SNR (Signal-to-Noise ratio)
|
All inputs: > 110 dBu
|
|
Impedance
|
Mic inputs: 3.9 kΩ
All other inputs: > 10 kΩ
2TK output: 1 kΩ
All other outputs: 120 Ω
|
|
Crosstalk
|
Adjacent inputs: < -80 dB @ 1 kHz
Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channel 1, panned hard left or right)
|
|
Equalization
|
High: ±15 dB @ 12 kHz
Low: ±15 dB @ 80 Hz
|
|
Connectors
|
(2) 1/4” (6.35 mm) TRS outputs
(2) 1/4” (6.35 mm) TRS stereo L/R inputs
(1) 1/4" (6.35 mm) TRS headphone output
(1) 1/4" (6.35 mm) TRS mono input
(1) XLR input
(1) Stereo RCA L/R input
(1) Stereo RCA L/R output
(1) USB type-B input
(1) DC power input
|
|
Controls
|
(1) Power switch
(6) Volume control knobs (1 per input and output)
(3) Gain control knobs (1 per channel)
(3) EQ Hi control knobs (1 per channel)
(3) EQ Low control knobs (1 per channel)
(3) Stereo pan control Knobs (1 per channel)
(2) Locking switch buttons
|
|
Indicators
|
(1) Power LED, (3) Peak LEDs, (8) Main Out meter LEDs
|
|
Main Mix
|
Main output: (2) 1/4" (6.35 mm) balanced TRS, +22 dBu max output
2TK output: (2) unbalanced RCA, 0 dBu max output
Headphone output: (1) stereo 1/4" (6.35 mm) TRS, 160 mW @ 32 Ω
|
|
Power
|
Connection: DC
Voltage: 18V, 500 mA
Consumption: 9 W
|
|
Dimensions
(width x depth x height)
|
6.3" x 7.6" x 2.6"
159.5 mm x 193 mm x 66 mm
|
|
Weight
|
2.0 lbs.
0.9 kg
|
