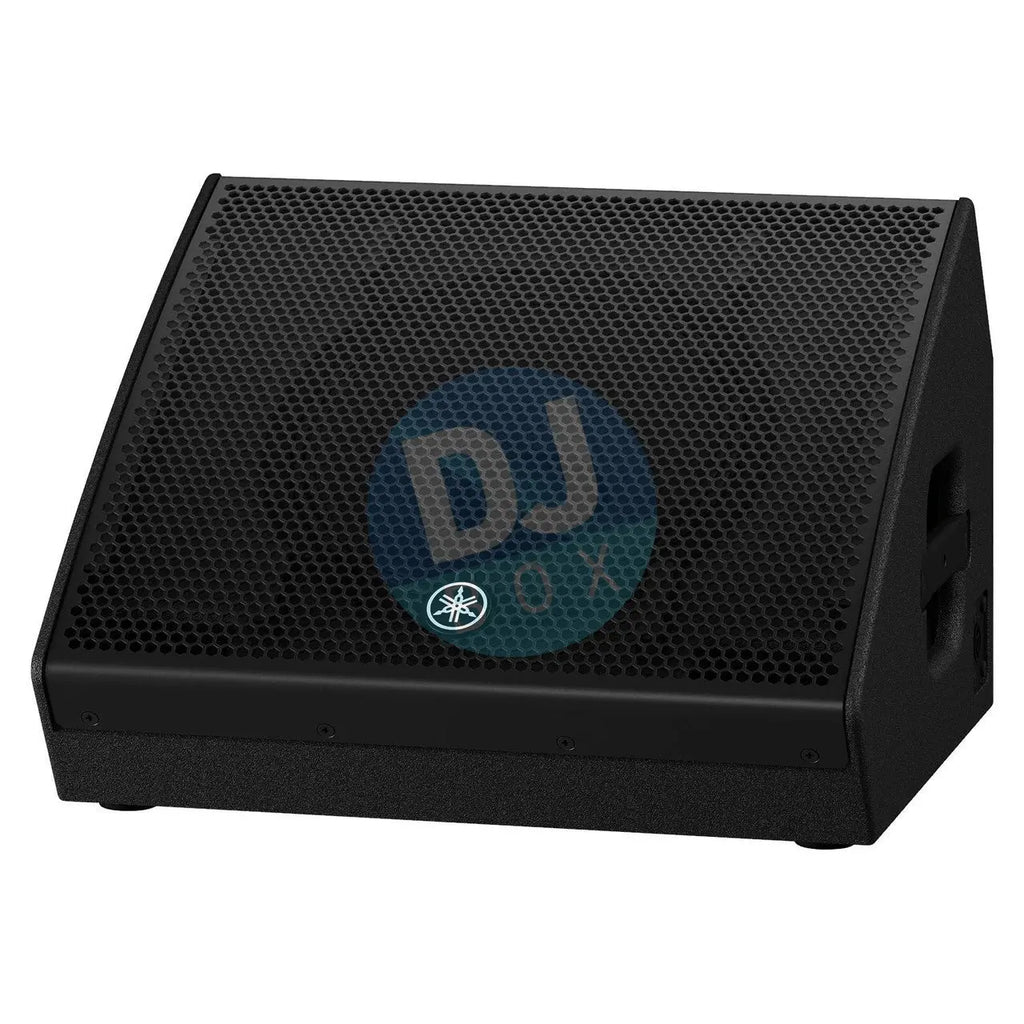

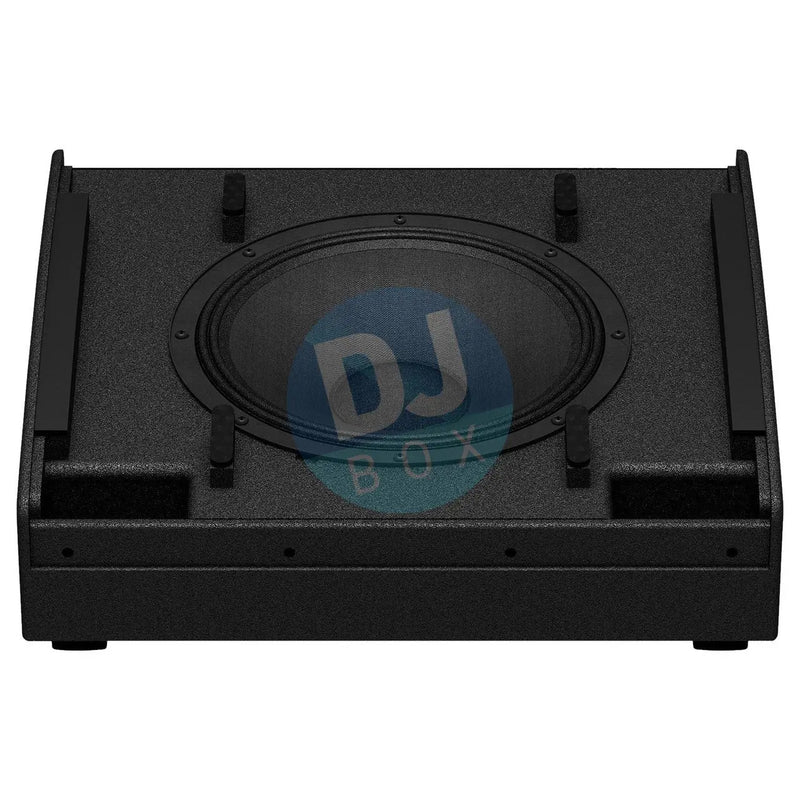

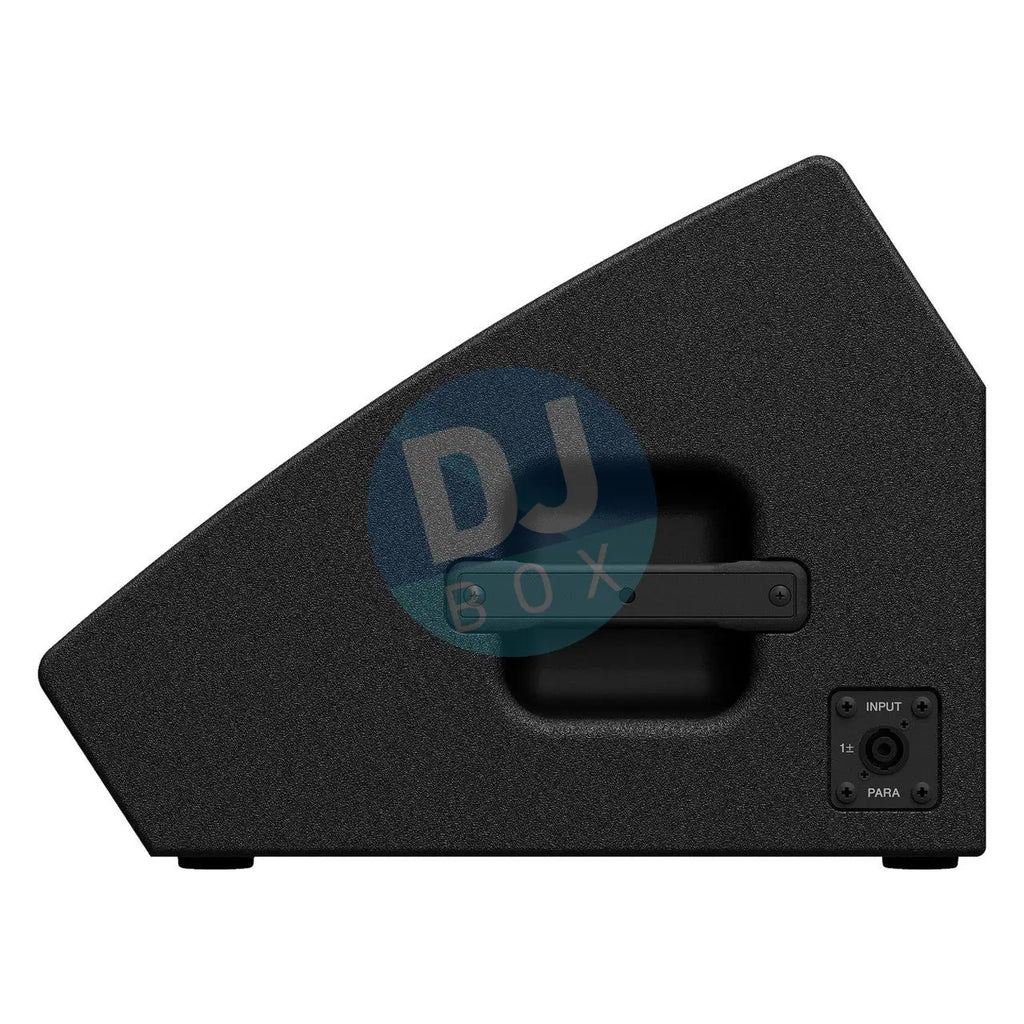

Yamaha CHR12M Monitor speaker
Yamaha 1000W CHR12M 12 inch Passive Speaker
1000-watt Passive PA Speaker with 12" LF Driver and 1.75" HF Driver
The CHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.
The CHR12M is a 2-way loudspeaker with a 12-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration, perfect for use as a floor monitor. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR12M offers best-in-class sound quality and durability.
Yamaha CHR12M Features
- Coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for monitoring
- Plywood cabinet delivers a clear sound with minimal vibration
- Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
- A pole socket for use on a stand
- Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance
- CHR12M 12" 2-way passive stage monitor1
- Speaker Type2-way Speaker, Bass-reflex
- Frequency Range (-10dB)61Hz - 20,000Hz
- Coverage Area (HxV)90° x 90°
- Nominal Impedance8 Ω
- Sensitivity (1W; 1m on axis): 93 dB SPL
- Peak (calculated): 123 dB SPL
- Diameter: 12" cone
- Voice Coil: 2.5"
- Magnet: ferrite
- Diaphragm: 1.75"
- Type: 1" throat coaxial compression driver
- Magnet: ferrite
- Power Rating
- Noise: 250W
- PGM: 500W
- Peak: 1,000W
- I/O ConnectorsSpeakON NL4MP x 2 (Parallel)
- Cabinet Materialplywood
- Finishdurable polyurea painting, black
- Handleside (1)
- Pole SocketΦ35 mm x1 (Bottom)
- Floor Monitor Angle57°
- Dimensions (WxHxD)19.7" x 13.5" x 17.9"
- Weight34.4 pounds
