Hill Audio ZPR-4620V2 4-Zone Mixer
Experience Professional Audio Processing with Hill Audio ZPR-4620V2 4-Zone Mixer

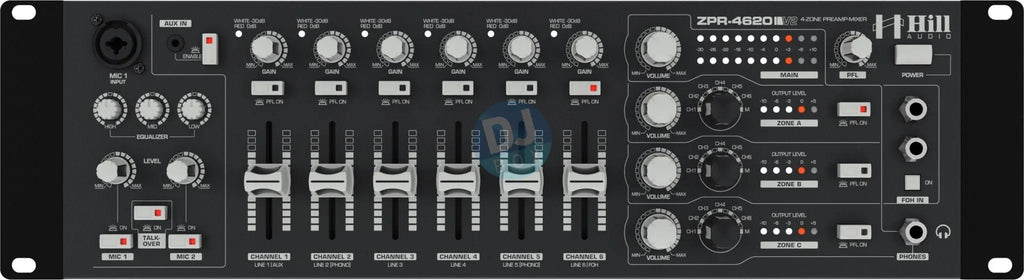

Hill Audio ZPR-4620V2 4-Zone Mixer
The ZPR-4620V2 4-Zone mixer is the most versatile choice for medium-sized multi-zone sound systems built around a stereo main zone. The unique CascadeZone © concept allows the three additional mono zones to either carry the same signal as the stereo zone or any of the 6 individual input signals. 2 microphone inputs sport adjustable priority and can be included in or excluded from each of the output zones. All essential controls are located on the front panel, while some specific settings can only be made on the rear panel. This includes zone adjustments like maximum level settings, equalization and 100Hz Highpass filters. The combination of front-panel and rear-panel controls make the ZPR-4620V2 ultimately flexible while still being user-friendly even for less experienced operators.
6 stereo input channels (4xLine, 2xPhono/Line) with 2-color signal/peak LED, gain control and 45mm dual-rail fader
1 balanced stereo input (FOH input)
Front panel 3.5mm stereo TRS input
2x Mic inputs with rear-side 1/4” TRS connectors, one with additional front-side Combo connector
12V phantom power for microphones by internal jumper
Voice-specific 3-Band EQ plus “on air” switches for mic inputs
Adjustable auto talk-over for automatic microphone priority
Master section with one stereo output zone (dual 10 LED level meter) and three mono output zones (5 LED level meters)
CascadeZone ©: Mono zone sources selectable from Inputs 1-6 or stereo Master signal
Each output zone with rear-side adjustable max. level control
Each output zone with both balanced XLR and Phoenix connectors; stereo zone with additional unbalanced RCA output
Rear side EQs: 3-band (stereo zone), 2-band (mono zones)
Switchable 100Hz HPF & microphone exclusion for mono zones
Emergency priority input and output mute contact for external output muting/emergency message priority
PFL section with volume control and 6.3mm stereo jack
Unbalanced record output
All switches with LED status indicator
Internal linear power supply for excellent audio dynamics
Full metal case with detachable rack ears
AC mains voltage selector switch 115/230V
Signal/Noise ＞82dBu (unweighted 22Hz-22KHz)
Crosstalk Damping ＞65dB
Frequency response 20Hz – 20 kHz
AC supply 115/230V~ 50Hz-60Hz (20W)
Dimension 483.0×133.0×162.0 mm WxHxD
Weight 4.3 kg
Looking for top-quality audio processing equipment? Look no further than the Hill Audio ZPR-4620V2 4-Zone Mixer. This must-have mixer provides professional-level sound quality for all your music needs, making it the perfect addition to any studio or sound system.
Whether you're a professional musician or simply a music enthusiast, the Hill Audio ZPR-4620V2 4-Zone Mixer is the perfect choice for your audio processing needs. Designed with versatility and performance in mind, this mixer is equipped with advanced features that allow you to effortlessly create high-quality audio.
One of the most notable features of the Hill Audio ZPR-4620V2 4-Zone Mixer is its ability to split sound across four different zones. This allows you to create separate audio channels for different sections of your event or venue, making it possible to deliver a customized listening experience for your audience.
In addition to its impressive zoning abilities, the Hill Audio ZPR-4620V2 4-Zone Mixer also comes equipped with a range of other features that make it the perfect choice for audio processing. Its high-quality preamps ensure that all your audio is clean and clear, while its versatile EQ settings allow you to tailor your sound to your specific needs.
The Hill Audio ZPR-4620V2 4-Zone Mixer is also incredibly easy to use, thanks to its intuitive interface and user-friendly design. With clearly labeled input and output channels, you can quickly and easily connect all your audio sources, and its compact size makes it a breeze to transport from one location to another.
Overall, the Hill Audio ZPR-4620V2 4-Zone Mixer is the perfect choice for anyone who is looking for top-quality audio processing equipment. With its advanced features, versatile design, and professional-level sound quality, this mixer is a must-have for any musician, sound engineer, or audio enthusiast. So why wait? Order yours today and experience the difference for yourself!
