DAP XI-8 MKII - Full range Installation cabinet
Introducing the DAP XI-8 MKII Full Range Installation Cabinet Speaker
Presenting the Xi MKII series, a loudspeaker range for fixed audio installations, redesigned from the Xi- installation speakers with significant changes. Major change is the use of a Celestion HF Driver which enhances the sound performance of the unit extensively. The cabinet and grill have been redesigned as well to have a contemporary and elegant look.
Besides the looks and sound quality it also excels in installer-solutions with versatile installation possibilities: optional U-shape brackets, screw threads for use of flying eyes and to fit most common wall mount brackets.

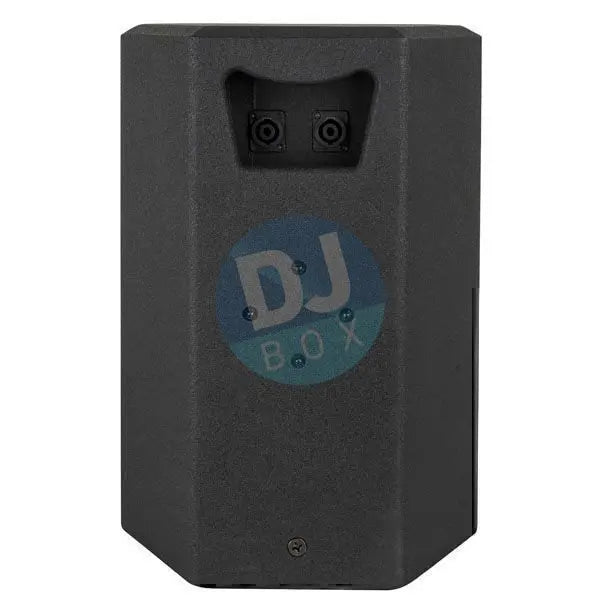

No inner adapter applied and a recessed speakon chassis completes the perfect design for an install cabinet. Finished with a scratch resistant paint and a MagTag metal grill, which can be detached without tools, fast and easy.
The Xi-5MKII and Xi-6MKII are 16 Ohm to accommodate installations with larger quantities. Xi-8MKII and XI-10MKII have rotatable horns which makes the use in both horizontal and vertical position possible. The high powered subwoofer has a ultra-compact design so it will fit in every location and with the optional slim line wall bracket it is possible to mount the subwoofer tight to a wall.

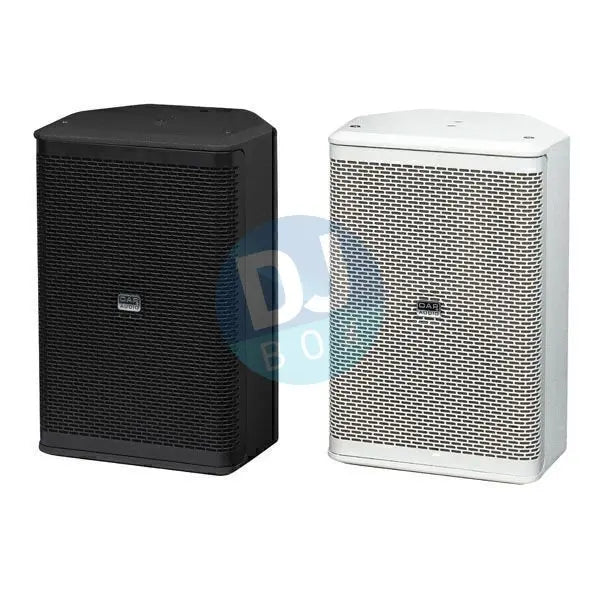

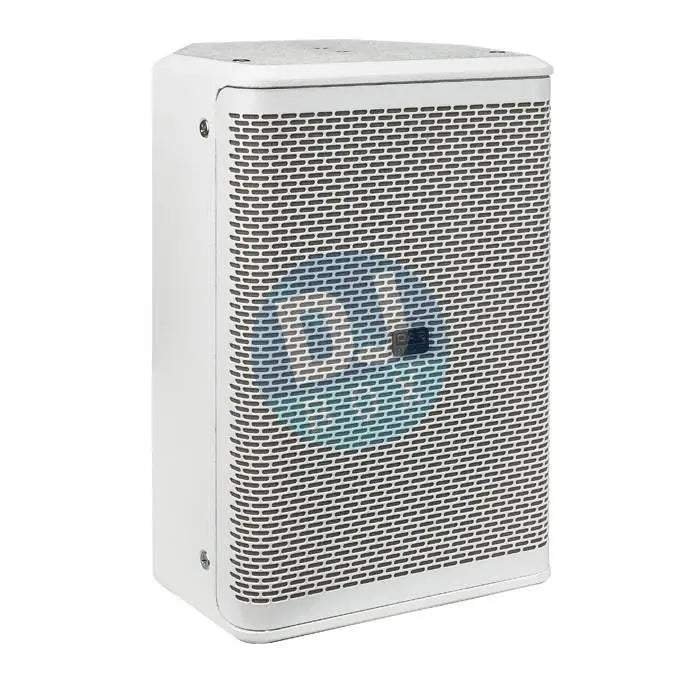

The Xi-MKII series meets today’s standards and is applicable for a wide variety of indoor applications such as restaurants, cafes, clubs, health centers, theme parks, hospitality areas and anywhere where an outstanding sound quality and a compact high pressure level speaker are required. Xi MKII series cabinets are available in black and white.

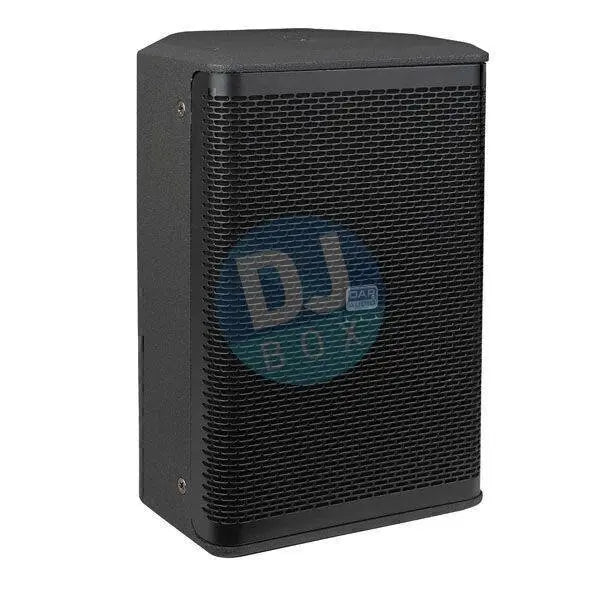

The 2-way Xi-8MKII installation speaker offers an 8" LF driver and a 1.4" Celestion HF driver. Various mounting options which have been expanded by making the horn rotatable. With this option you have the choice of mounting the speaker vertically or horizontally. This makes the Xi-8MKII a very versatile model which suits almost every space. The corresponding hanging brackets are optional: D3424HB for black and D3424WHB for white
|RMS Input Power||250 W|
|Peak Input Power||1.000 W|
|Passive Input Connection||NL4|
|Passive Output Connector||NL4|
|Speaker Sensitivity (1w/1m)||95 dB|
|Speaker Impedance||8 Ω|
|Max. SPL on 1m||125 dB|
|Frequency Response Minimum||55 Hz|
|Frequency Response Maximum||20.000 Hz|
|Frequency Response (-10dB) Minimum||45 Hz|
|Frequency Response (-10dB) Maximum||20.000 Hz|
|Woofer Diameter||8 "|
|Woofer Voice Coil||2 "|
|Woofer Magnet Type||Ferrite|
|Compression Driver Diameter||1 "|
|Compression Driver Voice Coil||1 "|
|Compression Driver Magnet Type||Ferrite|
|Dispersion Angle Horizontal||90 °|
|Dispersion Angle Vertical||60 °|
|Height (mm)||430 mm|
|Width (mm)||290 mm|
|Length (mm)||263 mm|
|Material Thickness||15 mm|
|IP Rating||IP20(indoor use only)|
|Speaker Grill Material||Steel|
|Speaker Handles Positions||Back|
|Mounting Options||Bracket, Eye bolt|
|Mounting Positions||Horizontal, Vertical|
|Rigging Eye Thread||M6|
