Yamaha DXR15 MKII Active loudspeaker


Price:
€809

Tax included Shipping calculated at checkout

Stock:
Sold out

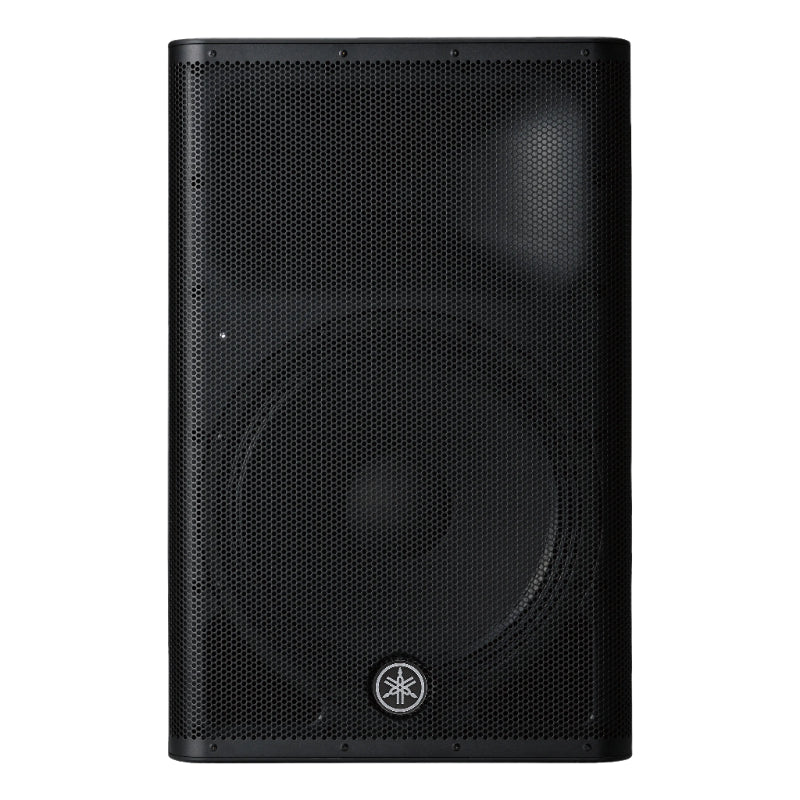

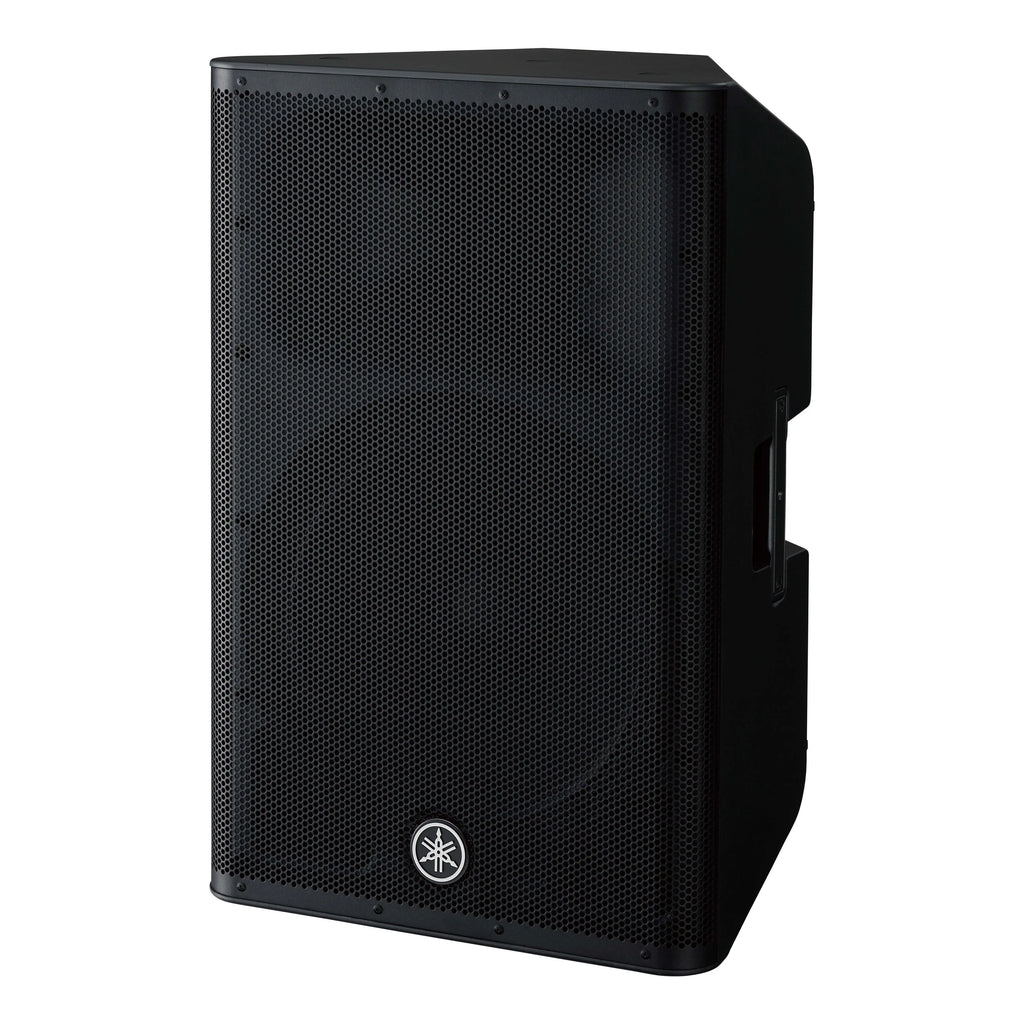

Yamaha DXR15 MKII Active speaker

Active 15" Yamaha speaker

The DXR15mkII achieves class-leading maximum SPL of 134dB and full bandwidth performance by combining a powerful Class-D amplifier with a high-power woofer and Yamaha's cutting edge technologies. Throw in some D-CONTOUR and you'll feel like you're using a subwoofer.

  • Speaker: 15" and 1.75" neodymium components
  • Horn: 90 x 60°
  • 2-Way bi-amped 1100 watt class-D power amplifiers (950 W LF + 150 W RF)
  • Frequency response: 49-20,000 Hz
  • Maximum SPL (sound pressure level): 134 dB
  • XLR and jack inputs / outputs
  • Black ABS plastic housing with 3 x M10 x 18 rigging points
  • Stand flange mount: 35 mm
  • Continuous speaker grille
  • Dimensions: 445 x 700 x 380 mm
  • Weight: 21.8 kg
  • Colour: Black

Technical Specifications:

  • Speaker type: 15" powered subwoofer, Band-pass type
  • Frequency range (-10dB): 40 Hz - 150 Hz
  • Components: 15" cone, 2.5" voice coil
  • Output power - Dynamic: 1020W / Continuous: 800W
  • Maximum output level (1m; on axis): 135 dB SPL
  • I/O connectors - INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST)
  • Processors: D-XSUB: BOOST, XTD LF, NORMAL
  • Cooling: Natural convection
  • Power requirements: 100V – 240V, 50Hz/60Hz
  • Power consumption: 100W
  • Pole socket: 35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
  • Width: 480 mm (18.90”)
  • Height: 611 mm (24.06”)
  • Depth: 614 mm (24.17”)
  • Net weight: 36.0 kg (79.4lbs)
  • Others - Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black
