Wolfmix W1 Stand alone DMX Controller
Description
Control Your Lighting Like A Pro with Wolfmix W1 Stand Alone DMX Controller
A toolbox of FX modules, music sync, and up to 4 DMX universes - packed inside robust hardware with a powerful processor. Choose from 1000’s of light fixtures, or build your own directly inside the controller. Whether it’s for a live performance, disco, club or show - Wolfmix has you covered.
Hands-on standalone control of your DMX lights

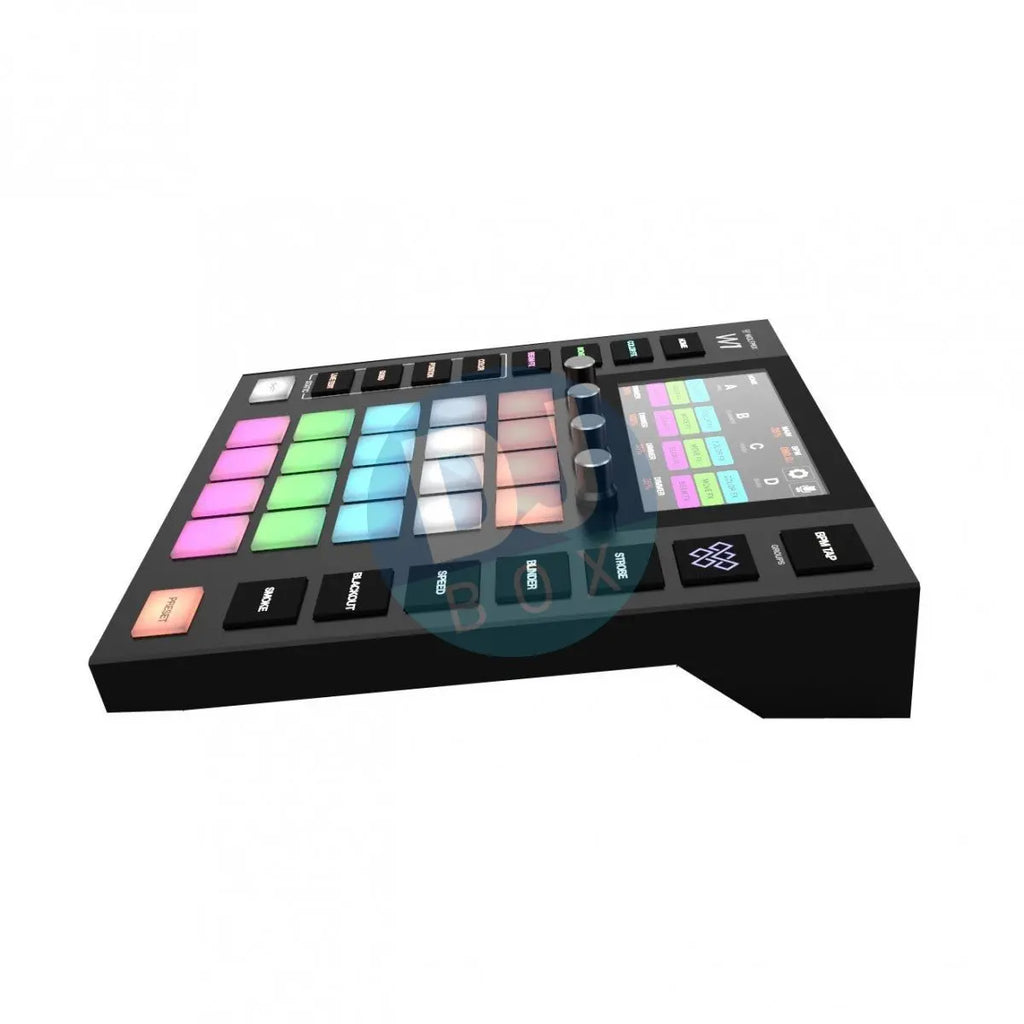

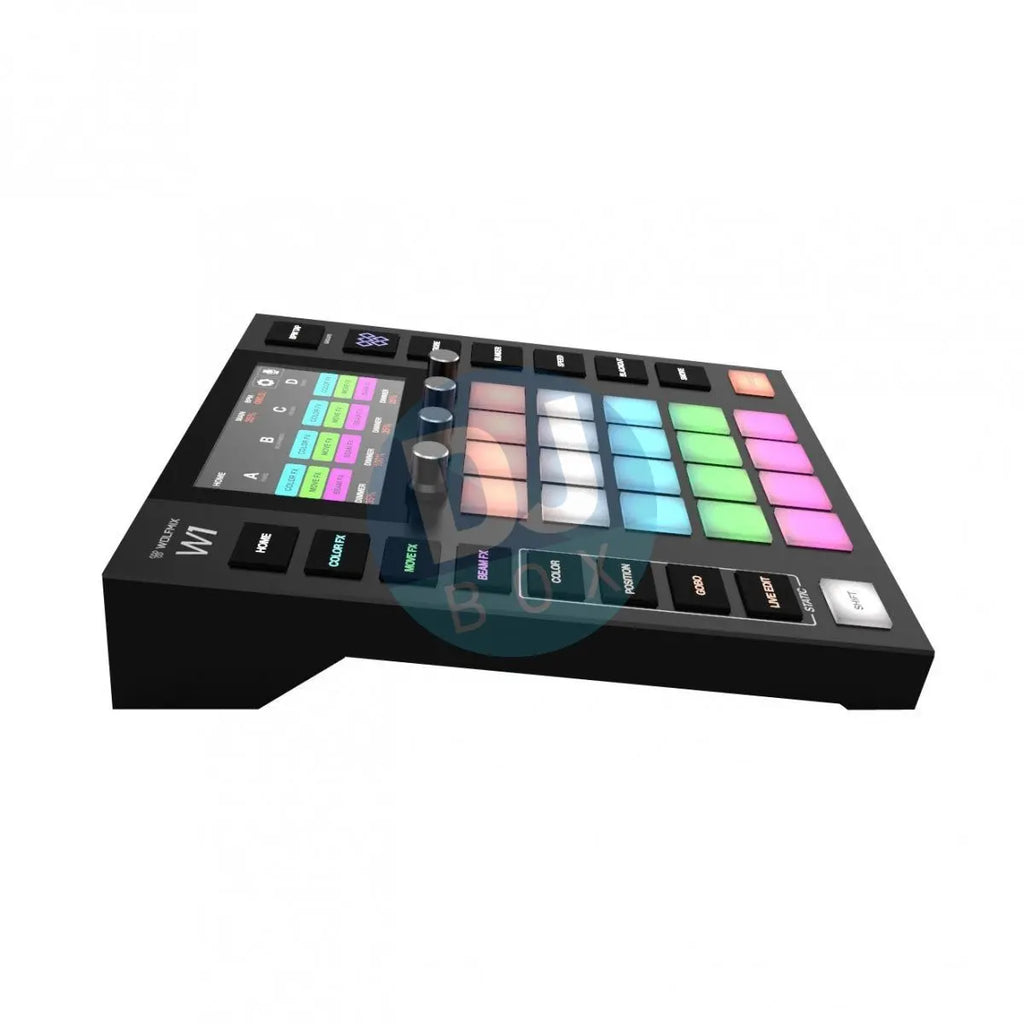

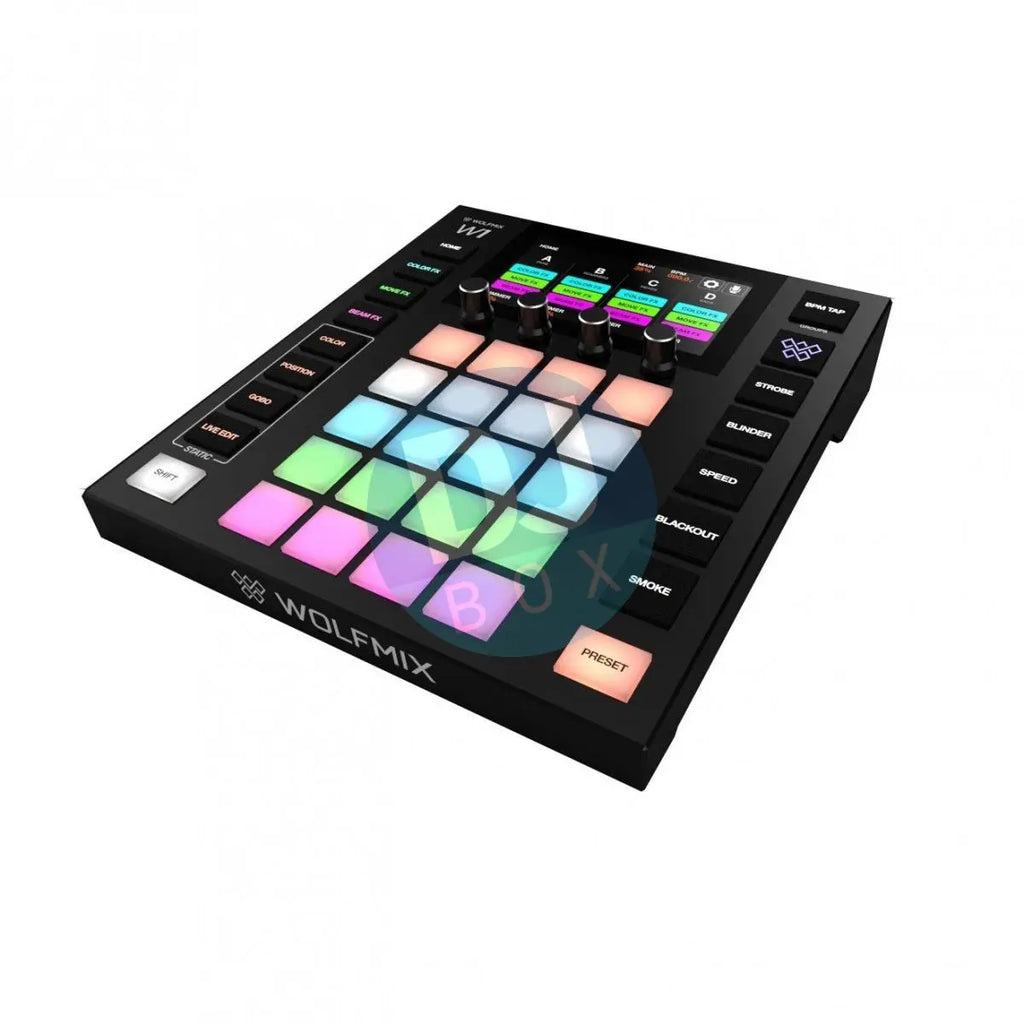

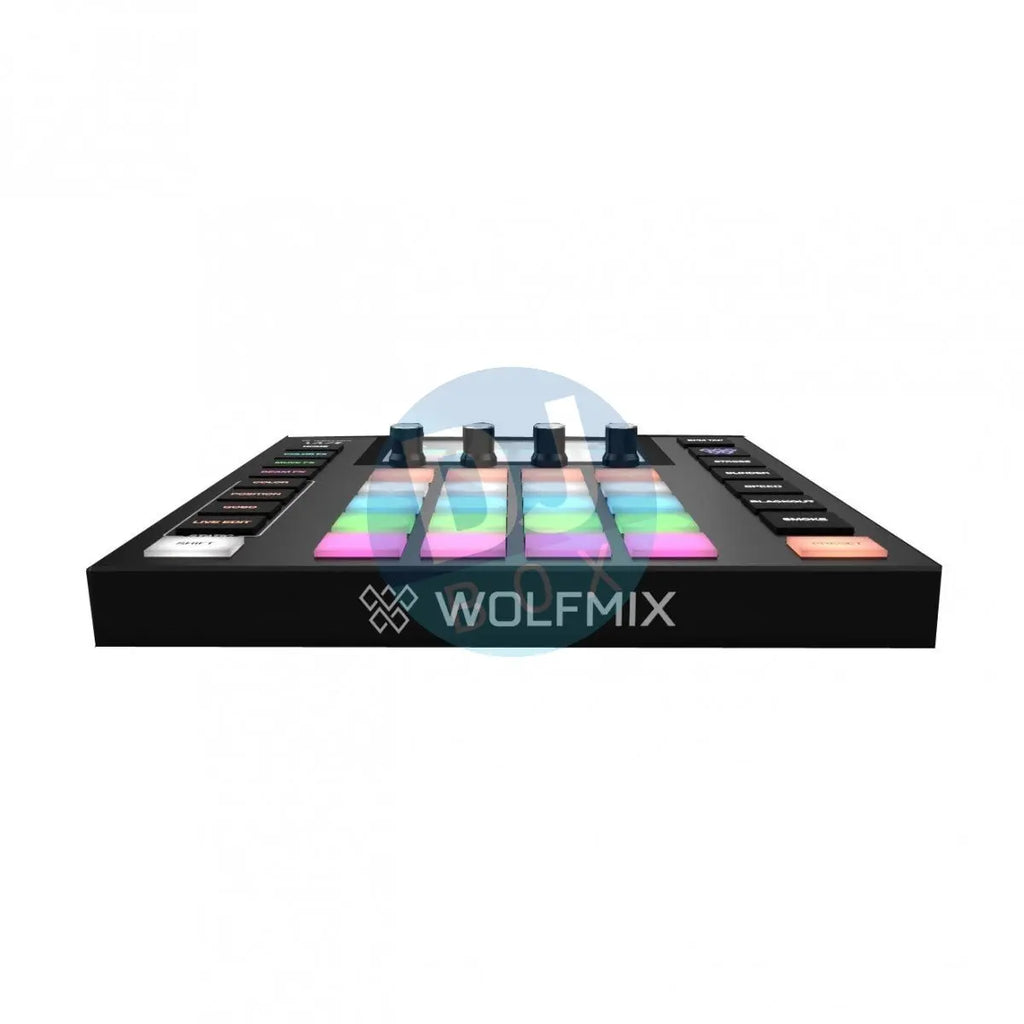

Wolfmix has been designed with the performer in mind, with 37 colored silicone buttons and a 4.3” touchscreen giving direct access to the most important FX and features.
Up to 4 DMX universes right out of the box
• Analog audio peak detection circuit
• Built in microphone with auto-gain
• 3.5mm jack socket
• Connect with WTOOLS PC/Mac app for project backup, firmware update, BPM sync with Ableton Link & OS2L
• Assign any universe to any XLR
• Sync with another Wolfmix
• Link with faders using DMX IN
Powerful effects modules bring your show to life
Inside the beast
Dedicated CPU
Robust beam engine, coded low-level straight onto the silicon, unlocking the raw power of the WOLFs 220 million heartbeats per second.
Flash memory
16MB of lighting fast readable NOR flash memory ensures the Wolfmix never misses a beat, with changes written on-the-fly.
Strong construction
Powder-coated steel base with VESA mount, and reinforced steel back-plate armour the WOLF for tough conditions.
High End finishing
A laser printed matt oil finish for durable, yet soft-to-touch silicon pads, backlit with color changing LEDs.
Touch screen

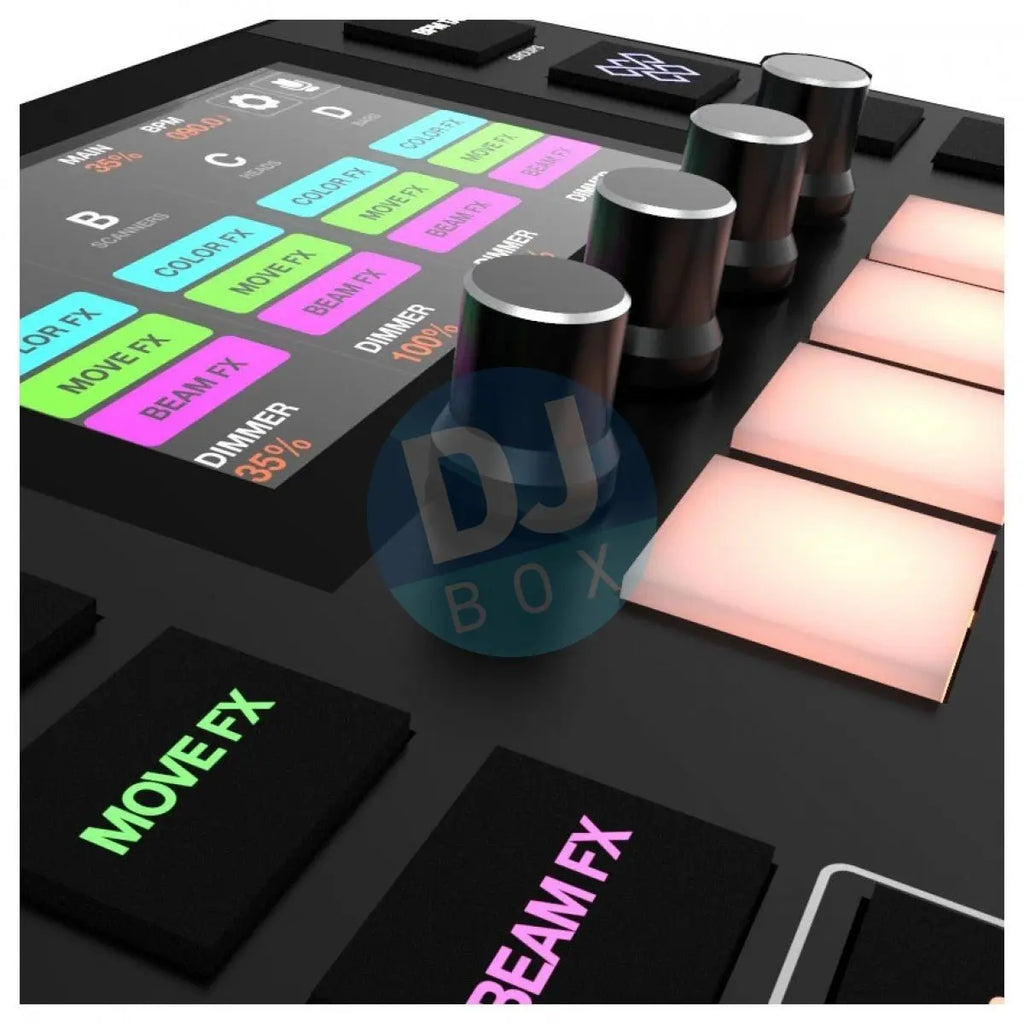

4.3” capacitive touch display with tinted glass. Fine-tune your project with the color picker, pan/tilt grid and on-screen keyboard for naming presets.
Push encoders
4 incremental push encoders with acceleration, for fine-tuning parameters whilst flying from 0-100% with a single twist.
This Wolf bites
25 FX, 8 groups, 100 presets, color, position & gobo palettes, 20 live edits…
Pair up a second Wolf
..or a DMX IN controller with WLINK
Connect 2 Wolfmix controllers together with the 5pin-5pin WLINK cable (available separately) and both will follow each other. This allows for up to 8 groups to be controlled side-by side, or for dual control by extending with a standard 5pin DMX cable. Sync a Wolfmix behind the bar with another in the DJ booth, or a Wolfmix on stage with another Front Of House.
Alternatively, the WLINK socket can be used to connect a DMX controller such as a traditional DMX faderboard- allowing for DMX input channels to be mapped to group dimmers or directly to output channels. WLINK requires an add-on purchase available through the WTOOLS app.
Specifications
• 1070g / 2.36lb
• Powder-coated steel base plate with 100mm VESA (M4 6mm max)
• Powder-coated steel reinforced back plate
• Capacitive touch
• Incremental push with acceleration
• LED color backlit
• 8MB RAM
• 16MB Flash
• 3.5mm Jack Line-In
• Analog adaptive peak detector

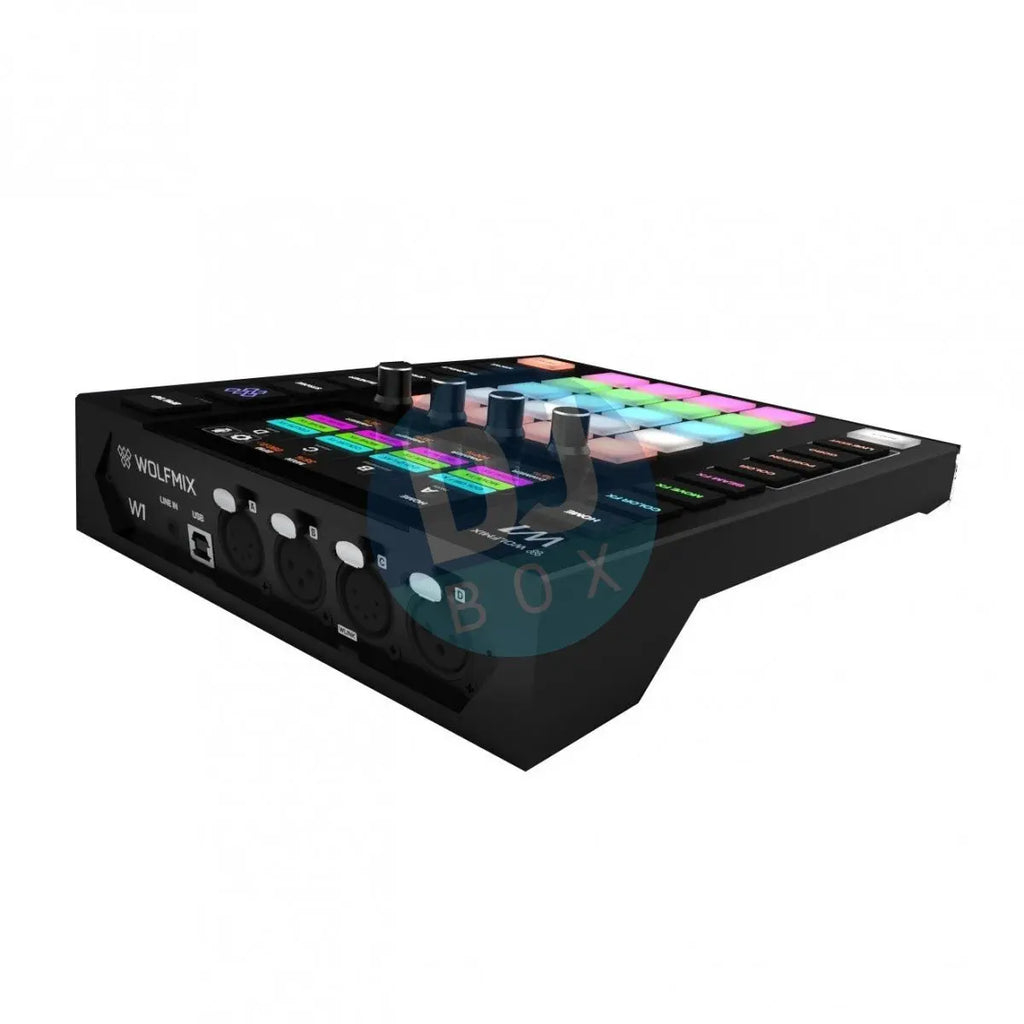

• 1x 5pin DMX OUT XLR connector
• 1x 5pin DMX IN/OUT XLR connector with WLINK
• High-speed USB communication
• Compatible with any DMX device
• Up to 4 DMX universes (2048 channels. Add-on required for U3+4)*
• Up to 680 fixtures & beams
• Up to 50 fixture types
• Up to 5000 fixture features (color/gobo etc...)
• 8 fixture groups
• 6 projects
• 15000+ available fixtures (3500+ on the controller)
• DMX address, fixture order & group setup
• Use as a DMX splitter with DMX universe mapping
• Move FX module with 8 effect types
• Beam FX module with 8 effect types
• 6 Flash buttons for controlling Special FX, Strobe, Blinder, Speed, Blackout & Smoke
• Static color palette with 10 user definable colors per group & gradient control
• Static position palette with 5 user definable positions per group with fade & fanning
• Gobo palette with 5 user definable gobos per group
• 40 namable live edit buttons with flash triggering mode and ‘Park’ function
• 50 namable presets for storing snapshots with hold and fade timings
• Preset playback cue list- all presets or per page of 20 presets
• Group FLASH, FULL and Blackout
• 16 bit Pan/Tilt control
• Multi-beam LED bar control
• FX music pulse sync from Microphone or Line-In
• FX BPM sync with Ableton Link, OS2L or BPM TAP
• Effect Speed, Phase, Order, Size, Fade, Fan & Flick
• Live control of move FX registration point
• Global FX speed and freeze control
• Map DMX IN with group dimmer and patch to output channels (add-on required)*
• WLINK - sync with another Wolfmix controller (add-on required)*
• Fixture calibration tool, to limit the area of moving fixtures
• X-Y touch controlled positioning grid
• RGBW touch controlled color picker
• 8-step real time sequencer for creating beam and move FX
• Live view of DMX levels with default value override and DMX channel tester
• Beam Editor to override Min and Max values used in generated FX
• Automatic matching of similar gobos across different fixture types
• Timed release of flash and preset buttons
• Fixture FLIP function, for reversing beam order
• Fixture SPLIT function, for splitting up multi-FX bars
• Lock full controller, or lock editing with a password
• Project & fixture backup with WTOOLS app
• Offline 3D visualization with Easy View & WTOOLS over USB (add-on required)*
• Auto-recovery of active project (no manual saving needed)
• Import different fixture setups into the same project
• Starts in under 2 seconds. Starts sending DMX in under 1 second
• Factory firmware startup recovery mode for times of crisis
Take your lighting game to the next level with the Wolfmix W1 Stand Alone DMX Controller. This powerful DMX controller allows you to control up to 512 DMX channels with precision and ease. Its user-friendly interface and intuitive controls make it perfect for beginners and professionals alike. The Wolfmix W1 Stand Alone DMX Controller features 8 faders, each with its own dedicated page button, allowing you to quickly and easily access all 512 channels. It also includes a built-in microphone for sound-to-light control, as well as support for MIDI input and output, making it ideal for use with music and other audio sources.
The versatile and compact design of the Wolfmix W1 Stand Alone DMX Controller makes it perfect for use in a variety of settings, from small gigs and performances to large productions and events. Its rugged build quality ensures that it will stand up to the rigors of touring and frequent use. If you're looking for a powerful, easy-to-use DMX controller that can handle all of your lighting needs, look no further than the Wolfmix W1 Stand Alone DMX Controller. Order yours today and take your lighting game to the next level!
